AFBR-57F5MZ-ELX Technical Specifications

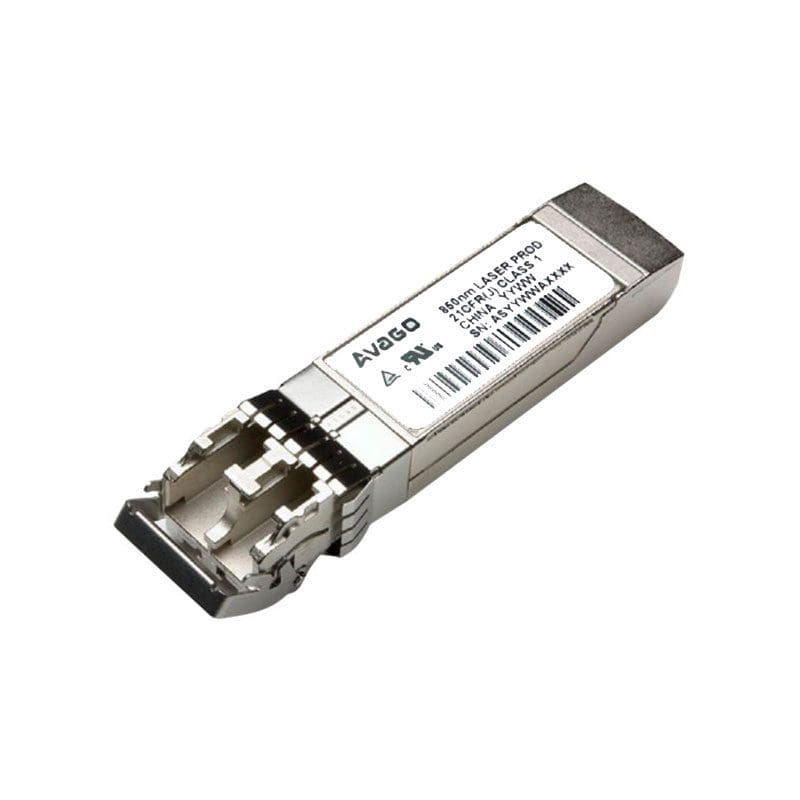

Avago 16GB SFP+ 850nm Transceiver
Header / Brand Avago
Networking / Connectivity Technology Wired
Networking / Data Link Protocol 16Gb Fibre Channel
Networking / Data Transfer Rate 16 Gbps
Networking / Form Factor Plug-in module
Networking / Type SFP (mini-GBIC) transceiver module
Packaged Quantity 1
Environmental Parameters
Max Operating Temperature 70 °C
Min Operating Temperature 0 °C
Expansion / Connectivity
Interfaces 1 x 16Gb Fibre Channel – LC multi-mode x 2
General
Device Type SFP (mini-GBIC) transceiver module
Form Factor Plug-in module
Miscellaneous
Compliant Standards RoHS, IEC 60825-1, CDRH, TIA/EIA-604-10A
Networking
Cabling Type Fibre Channel
Connectivity Technology Wired
Data Link Protocol 16Gb Fibre Channel
Data Transfer Rate 16 Gbps
Optical Wave Length 850 nm
