AF-24-HD-US Technical Specifications

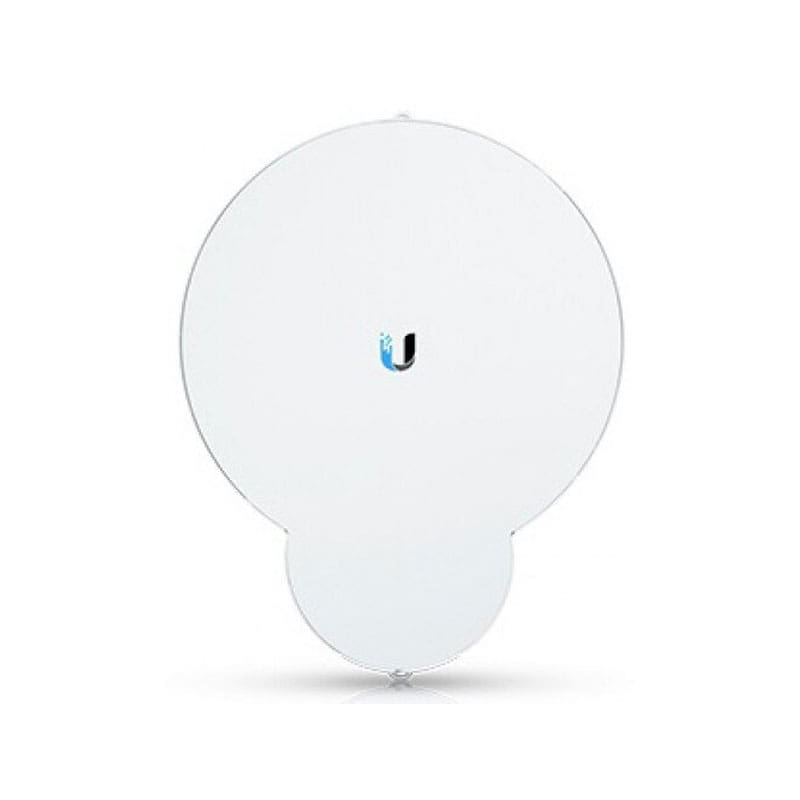

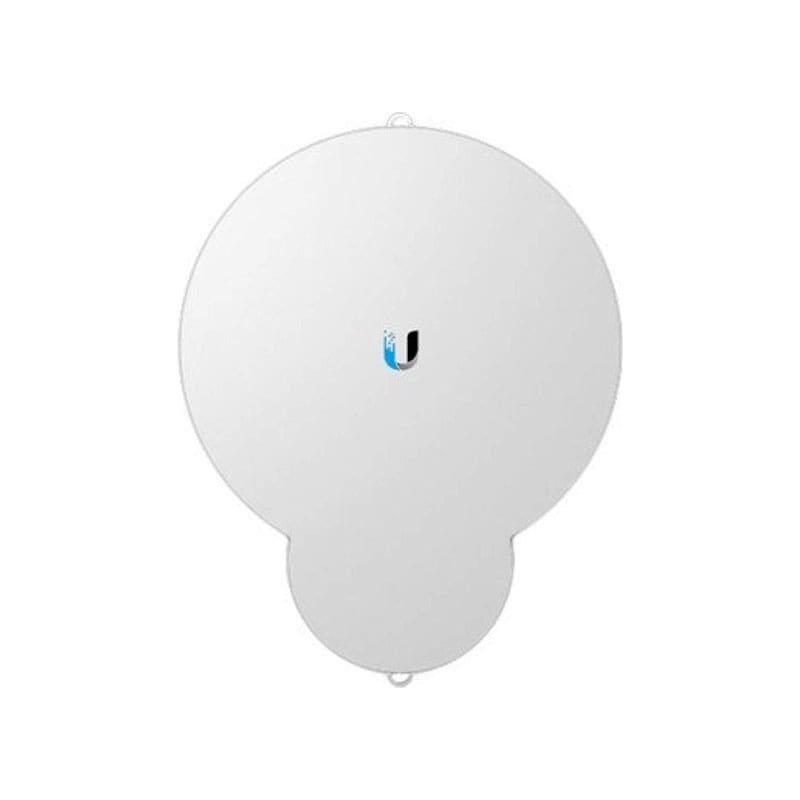

Ubiquiti Networks airFiber 24 GHz Carrier Class Point-to-Point Gigabit Radio
Manufacturer: Ubiquiti Networks
Brand: Ubiquiti Networks
Operating Frequency: 24.05 – 24.25 GHz
Weight: 17.3 kg (38.14 lb) Mount Included
Max. Power Consumption: 50 W
Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
Power Method: Passive Power over Ethernet
Supported Voltage Range: 42-58VDC
Certifications: CE, FCC, IC
Mounting Pole: Mount Kit (Included)
Operating Temperature: -40 to 55° C (-40 to 131° F)
Data Port: (1) 10/100/1000 Ethernet Port
Configuration Port: (1) 10/100 Ethernet Port
Auxiliary Port: (1) RJ-12, Alignment Tone Port
Maximum Throughput: 2 Gbps
Maximum Range: 20+ km
Packets per Second > 1 Million
Encryption: 128-Bit AES
Uplink/Downlink Ratio: 50% Fixed
Dimensions: 593 x 768 x 370 mm (23.35 x 30.24 x 14.57″)
