AF-24-HD Technical Specification

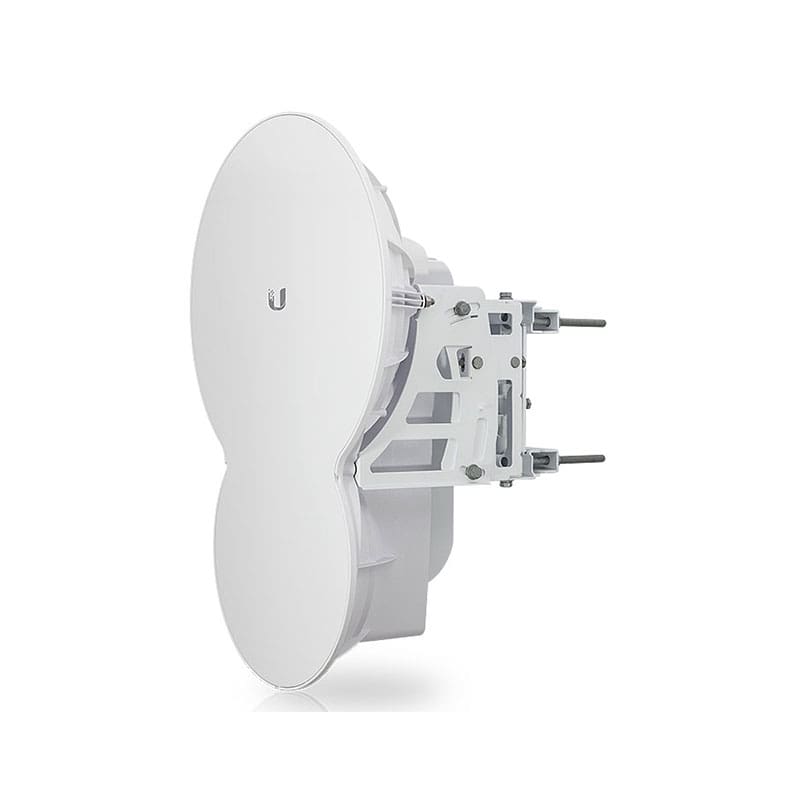

Ubiquiti AirFiber HD 24GHz 2+ Gigabit PTP Backhaul Radio
Manufacturer: Ubiquiti
Brand: Ubiquiti
Output Power: ~33 dBm (FCC/IC), ~20 dBm (CE)
Operating Modes: Master / Slave
Frequency Range: 24.05 – 24.25 GHz
Temperature Range: -40 to 55° C (-40 to 131° F)
PoE In: Passive Power over Ethernet (42-58VDC)
Antenna gain dBi: TX Gain – 33dBi, RX Gain – 40dBi
Max Power consumption: 50W
Polarisation: Dual-Slant Polarization
Wind Loading: 770 N @ 200 km/hr (170 lbf @ 125 mph)
Pole Diameter: 30-50mm
Dimensions: 593 x 768 x 370 mm (23.35 x 30.24 x 14.57″)
IP Rating: IP54
Typical Range: Up to 20km+
