ACX5448-M-AC-AFO Technical Specifications

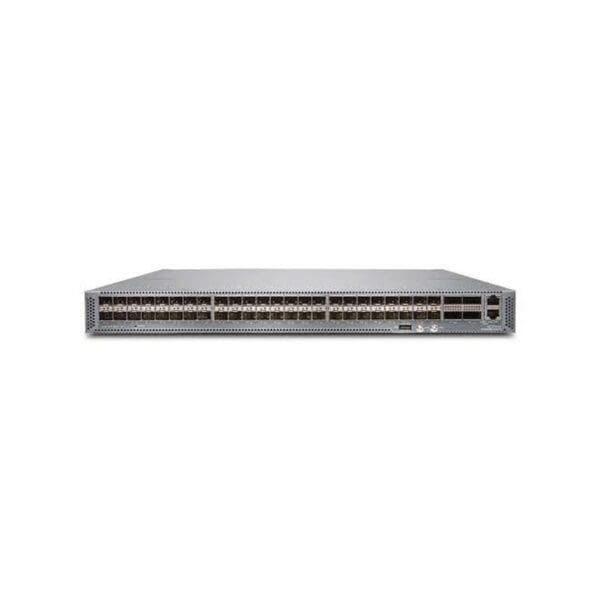

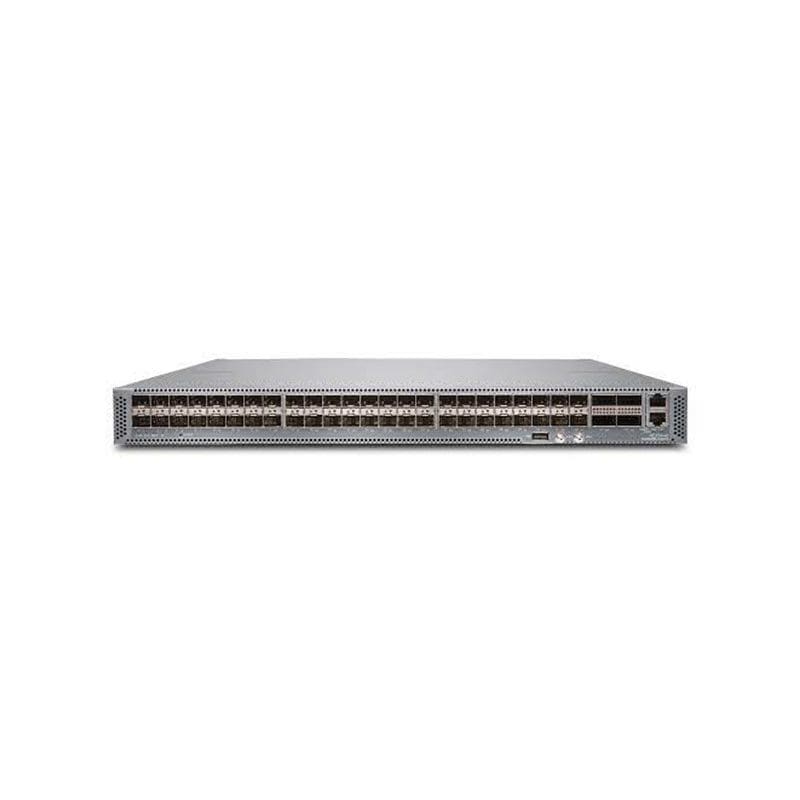

Juniper Networks ACX Series Universal Metro Router ACX5448-M Router Rack Mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series Universal Metro Router
Model :ACX5448-M
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Performance
Performance :Throughput: 800 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Interface Provided
Interfaces :6 x 100Gb Ethernet – QSFP28, 44 x 10Gb Ethernet / 1Gb Ethernet – SFP/SFP+
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Nominal Voltage :AC 120/230 V
Frequency Required :40/60 hertz
Dimensions & Weight
Width :17.3 inch
Depth :25.5 inch
Height :1.7 inch
Weight :26.12 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
