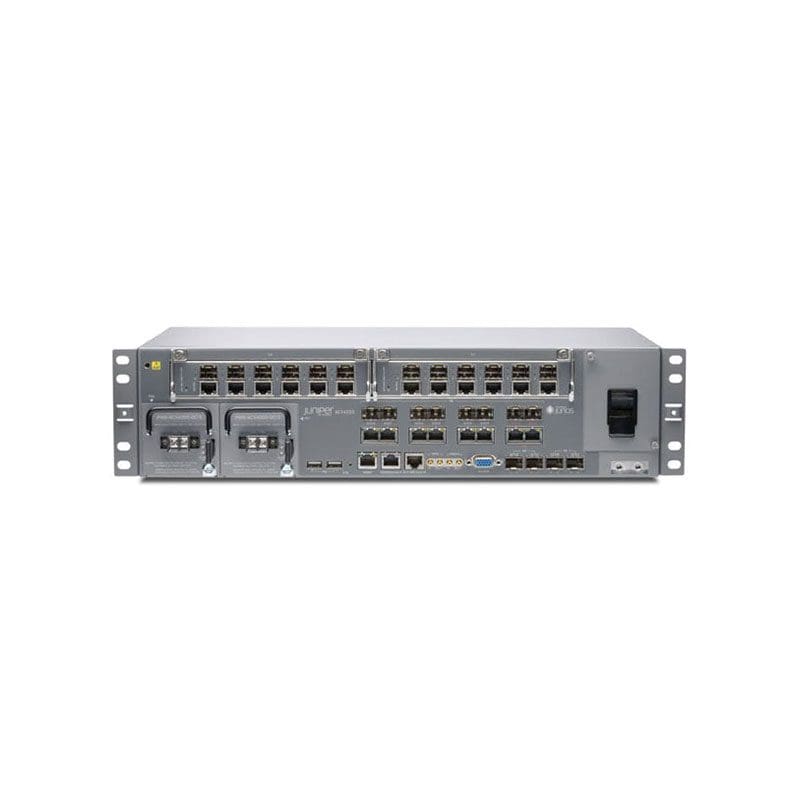

Refurbished ACX4000BASE-DC Technical Specifications
Juniper Networks ACX Series 4000 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :4000
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :2
Modem
Type :None
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol :MPLS
Remote Management Protocol :CLI, SNMP 3, SNMP 2, SNMP 1
Key Features :VPN support
Features :Timing support, High Availability, Class of Service (CoS), PoE++, Call Admission Control (CAC), VPN support
Compliant Standards :G.703, IEEE 1588v2
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x Modular Interface Card (MIC)
Interface Provided
Interfaces :10 x 1000Base-X – SFP (mini-GBIC), Alarm: 4 x input, 6 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 2 x 10Gb Ethernet / 1Gb Ethernet – SFP+, Alarm: 4 x output, Management: 1 x console, Serial: 1 x RS-232, 2 x 10Base-T/100Base-TX/1000Base-T (PoE++) – RJ-45
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :DC 24/-48/-60 V
Power Consumption Operational :150 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :2.5
Compliant Standards :TBR21, EN 61000-4-5, ETSI, EN 61000-4-11, CB, CISPR 22 Class A, UL 60950-1, JATE, EN 61000-4-4, GR-63-CORE, TBR12, CS-03, VCCI Class B, FCC Part 68, EN 60950-1, EN 60825-1, GR-1089-CORE, EN 61000-4-3, ETS 300 753, EN 61000-4-6, EN 61000-3-2, NEBS level 3, CAN/CSA C22.2 No. 60950-1, EN 61000-3-3, FCC Part 15 A, EN55022 Class A, IEC 60950-1, TBR13, R&TTE, EN 61000-4-2, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.3 inch
Height :4.3 inch
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
