Refurbished ACX2100-DC Technical Specifications

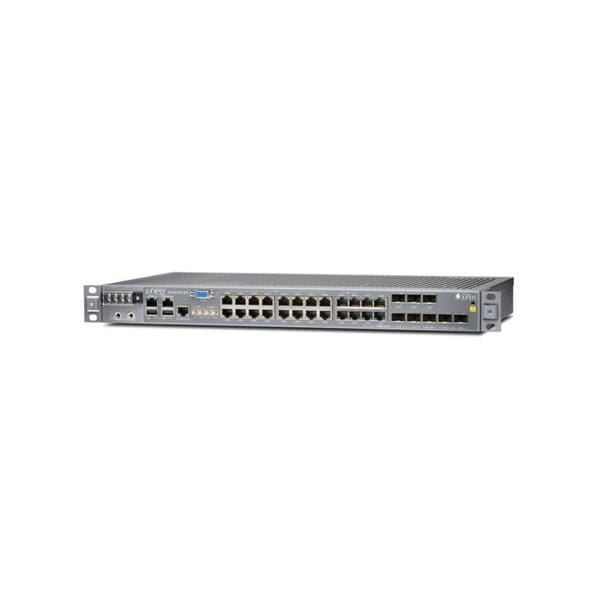

Juniper Networks ACX Series 2100 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :2100
Packaged Quantity :1
Modem
Type :None
Line Properties
Line Rate :T-1/E-1
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :TDM, Fast Ethernet, Gigabit Ethernet, Ethernet
Routing Protocol :MPLS
Remote Management Protocol :SNMP 1, SNMP 2, SNMP 3, CLI
Data Transfer Rate :60 GBps
Features :Call Admission Control (CAC), Class of Service (CoS), Fanless, Precision Time Protocol (PTP)
Compliant Standards :MEF 14, IEEE 1588-2008, G.703, MEF 21, MEF 9
Interface Provided
Interfaces :6 x SFP (mini-GBIC), Serial: 1 x RS-232, 2 x 10Gb Ethernet – SFP+, Alarm: 4 x output, 16 x T1/E1 – RJ-48, 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Alarm: 4 x input, Management: 1 x console
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :DC 24/-48/-60 V
Power Consumption Operational :80 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Compliant Standards :UL 60950-1, FCC Part 68, IEC 60950-1, JATE, CS-03, ETS 300 753, EN 61000-4-3, R&TTE, CISPR 22 Class A, EN 61000-4-2, EN 61000-3-2, NEBS, EN 61000-4-6, FCC Part 15 A, TBR21, EN 61000-4-4, EN 60825-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-4-11, ETSI, TBR13, EN 61000-3-3, VCCI Class B ITE, EN55022 Class A, TBR12, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.4 inch
Height :1.7 inch
Weight :8.31 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :149 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
