Refurbished ACX1000-DC Technical Specifications

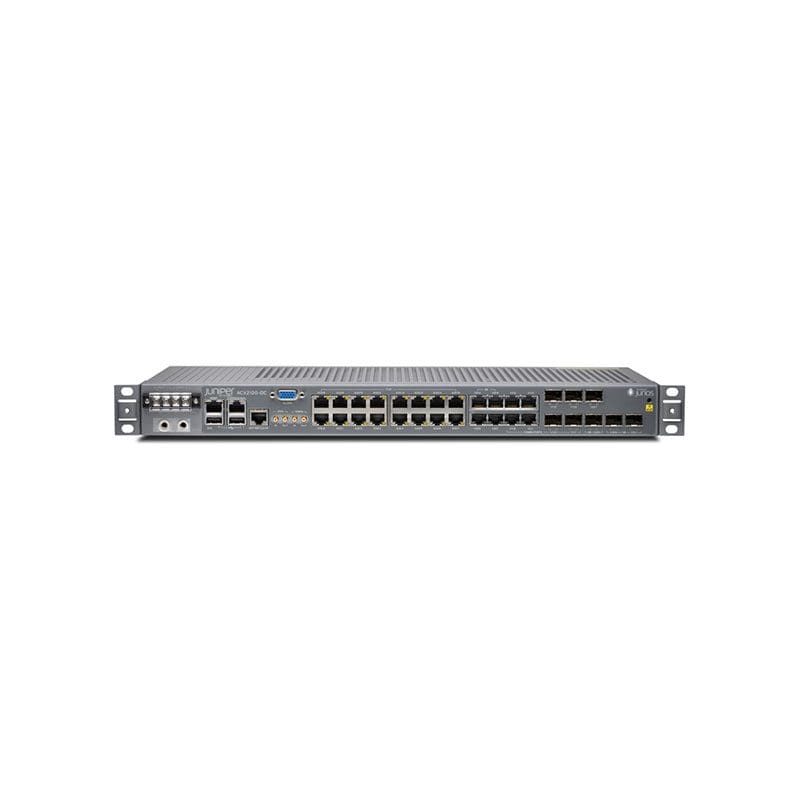

Juniper Networks ACX Series 1000 router
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :1000
Packaged Quantity :1
Modem
Type :None
Line Properties
Line Rate :T-1/E-1
Networking
Type :Router
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Ethernet, Fast Ethernet
Routing Protocol :MPLS
Remote Management Protocol :SNMP 3, CLI, SNMP 1, SNMP 2
Data Transfer Rate :60 GBps
Features :PoE+, Call Admission Control (CAC), Class of Service (CoS), Fanless
Compliant Standards :MEF 21, G.703, MEF 9, MEF 14
Interface Provided
Interfaces :8 x 10Base-T/100Base-TX/1000Base-T – RJ-45, 8 x T1/E1 – RJ-48, Alarm: 4 x output, Alarm: 4 x input, Serial: 1 x RS-232, Management: 1 x console, 4 x SFP (mini-GBIC)
Power Device
Type :Internal power supply
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :DC -24/-48/-60 V
Power Consumption Operational :65 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Height (Rack Units) :1
Compliant Standards :EN55022 Class A, VCCI Class B ITE, EN 60950-1, FCC Part 68, TBR13, EN 61000-3-2, R&TTE, TBR21, UL 60950-1, JATE, FCC Part 15 A, EN 61000-4-3, ETS 300 753, NEBS, EN 60825-1, CS-03, EN 61000-4-11, IEC 60950-1, CISPR 22 Class A, ETSI, EN 61000-4-2, EN 61000-4-6, EN 61000-3-3, CAN/CSA C22.2 No. 60950-1, TBR12, EN 61000-4-4, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :9.4 inch
Height :1.7 inch
Weight :6.48 lbs
Environmental Parameters
Min Operating Temperature :-40 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
