ACB-ISP-US Technical Specification

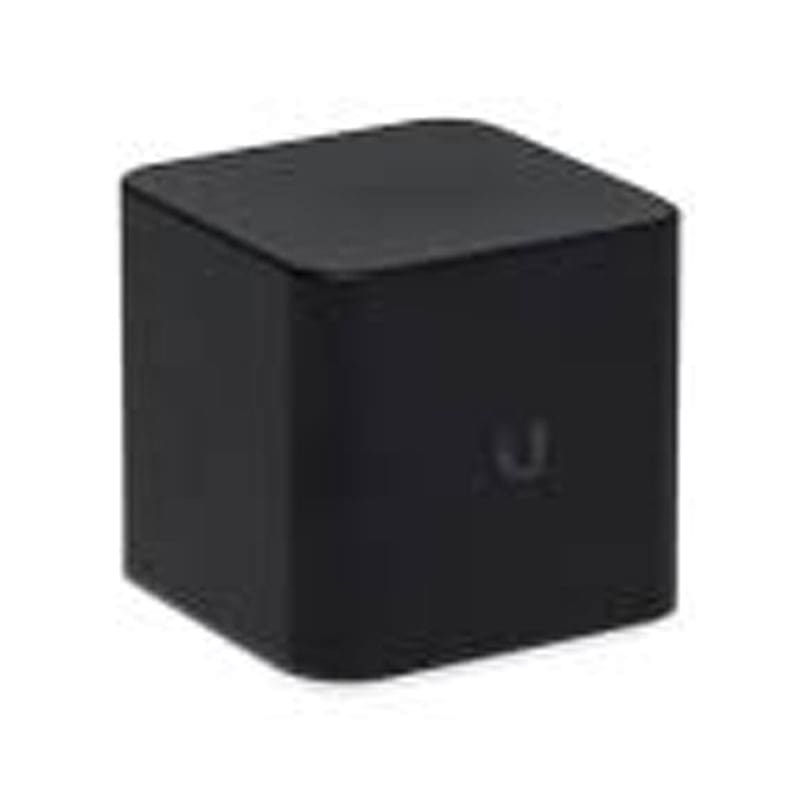

Ubiquiti AirCube AirMAX Home Wi-Fi Access Point With PoE In/Out
Manufacturer: Ubiquiti Networks
Brand: Ubiquiti
Dimensions: 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51″)
Weight: 215 g (7.58 oz)
Power Supply: 5V
Power Method: PoE 24V In on LAN Port 1 or 2A Micro USB Adapter (Not Included)
Supported Power Voltage: 4.95-5.05V
Max. Power Consumption: 5W
PoE Out Controllable: 24V PoE Out (+4, 5; -7, 8) on WAN Port
Management Interface: Wi-Fi / Ethernet
Networking Interface: (4) 10/100 Fast Ethernet Ports
LED: Status
Max. TX Power: 22 dBm
Antenna Gain: 4 dBi
Max. Speeds: 300 Mbps
Enclosure Characteristics: Black Plastic
ESD/EMP Protection: ±24 kV RJ-45 Interface
Operating Temperature: -10 to 50° C (-14 to 122° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
