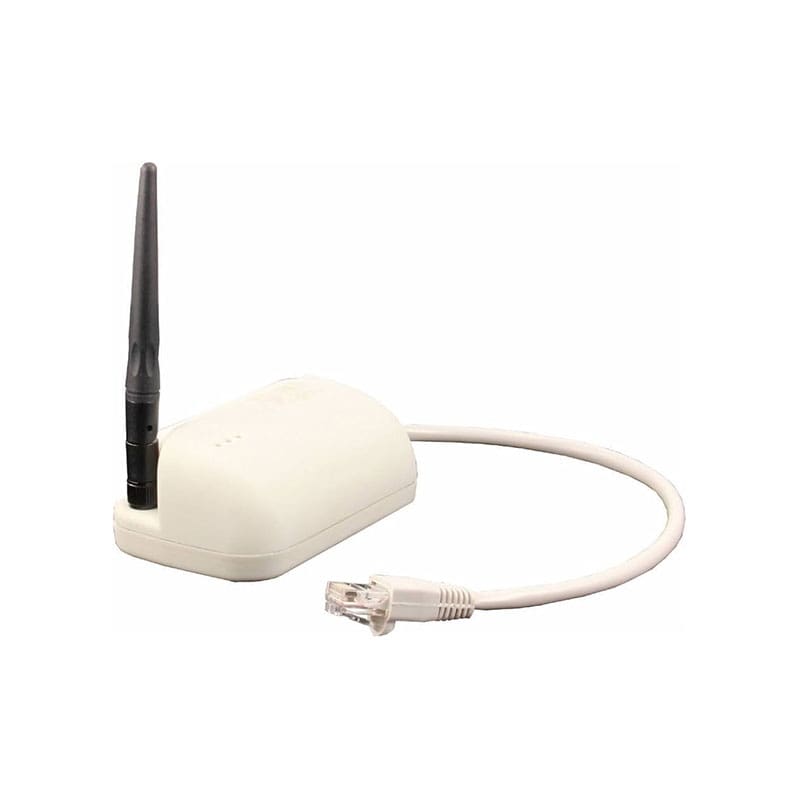

ABDN-ER-DP551 Technical Specifications
B&B AirborneM2M Enterprise – bridge/router
Brand: B&B
Product Line: B&B AirborneM2M Enterprise
Model: ABDN-ER-DP551
Manufacturer: IMC Networks
Network & Communication
Broadband Transmission Technology
2.4 GHz / 5 GHz
Compliant Standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, Wi-Fi CERTIFIED
Connectivity Technology
Wired, Wireless
Data Link Protocols
Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features
Direct Sequence Spread Spectrum (DSSS), Roaming function, SSH support
Form Factor (Hubs & Switches)
Desktop
Network Standard
ARP, CSMA/CA, DHCP, ICMP/IP, TCP/IP
Product Type
Bridge/router
Remote Management
TFTP
Status Indicators
Link OK, Link/activity, Power
Wireless LAN
802.11a/b/g/n
Connectivity
Interface Provided
LAN: 1 x 10Base-T/100Base-TX – RJ-45
Technical Information
Antenna Form Factor
External integrated
Antenna Gain Level
2 DBi
Antennas
1
Directivity
Omni-directional
Encryption
128-bit WEP, 64-bit WEP, AES, LEAP, TKIP, TLS, TTLS, WEP, WPA, WPA2-Enterprise
Line Coding Format
16 QAM, 64 QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Max Operating Temperature
185 degree Fahrenheit
Min Operating Temperature
-4 degree Fahrenheit
Operating Humidity
5 – 95% (non-condensing)
Product Information
Authentication Method
CHAP, Extensible Authentication Protocol (EAP), MS-CHAP, Secure Shell (SSH)
Packaged Quantity
1
Dimensions & Weight
Height
1.8 inch
Width
2.5 inch
Depth
3.9 inch
