A9K-SIP-700-2PK Technical Specifications

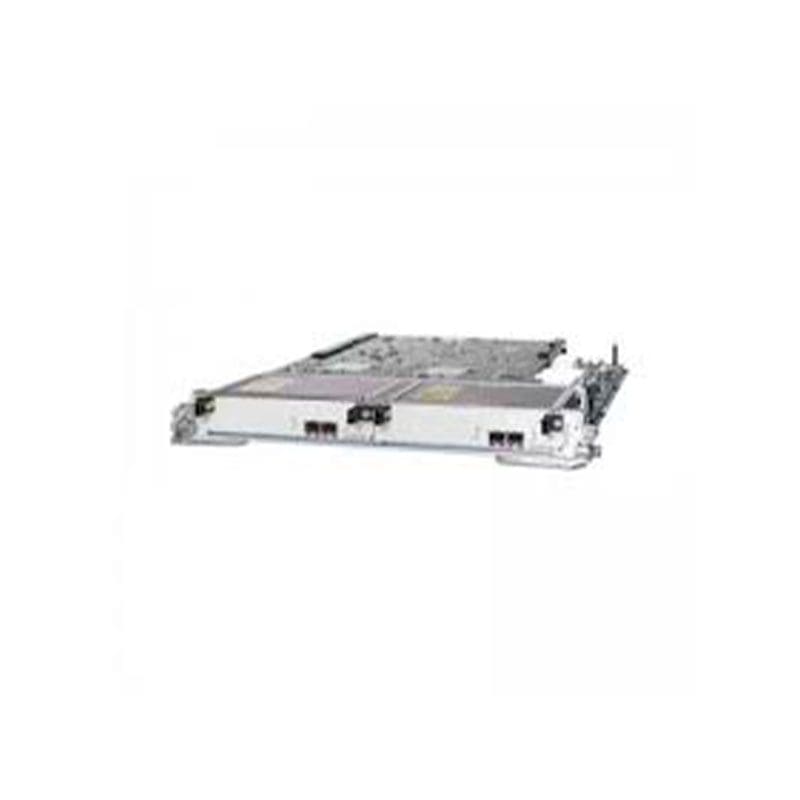

Cisco ASR 9000 Interface 2-Pack bundle for ASR-9000 SIP-700 Thor LC w/ Min 2x SPA’s
Type
2-Pack bundle for ASR-9000 SIP-700 Thor LC w/ Min 2x SPA’s
Chassis compatibility
All Cisco ASR 9000 Series chassis
Software compatibility
Cisco IOS XR Software Release 3.9 or later
Density
Up to 4 single-height SPAs or
Up to 2 double-height SPAs or
A combination of the two – subject to above restrictions
Interface Capabilities
A9K-SIP-700 supports following SPA interface types:
· CHT1/E1
· CT3/DS0
· T3/E3
· OC3 / STM1
· ChOC3 / ChSTM1
· OC12 / STM4
· ChOC12 / ChSTM4
· OC48 / STM16
· ChOC48 / ChSTM16
· OC192 / STM64
