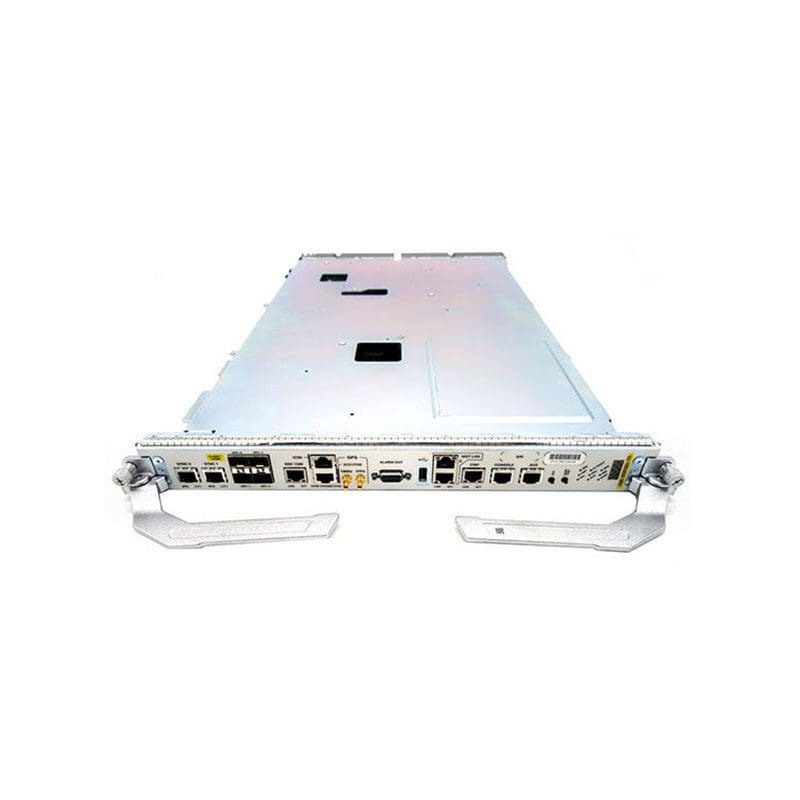

Refurbished A9K-RSP880-TR Technical Specification
Cisco ASR 9000 Route Switch Processor
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR 9000 Route Switch Processor
Model :880 for Packet Transport
Packaged Quantity :1
RAM
Installed Size :16 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :32 GB
Card Reader
Supported Flash Memory Cards :CompactFlash Card
Networking
Type :Control processor
Form Factor :Plug-in module
Connectivity Technology :Wired
Status Indicators :Alarm, HDD activity, Power, Status
Interface Provided
Interfaces :1 x management – RJ-45, 1 x RS-232/422, 1 x serial – RJ-45, 1 x USB 2.0 – Type A, 2 x 1000Base-T (management) – RJ-45, 3 x management (alarm), 4 x 10Gb Ethernet – SFP+
Dimensions & Weight
Width :16.9 inch
Depth :24.8 inch
Height :1.8 inch
Weight :17.79 lbs
Service & Support
Environmental Parameters
Min Operating Temperature :23 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 90%
Compatibility
Compatible With :Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904
