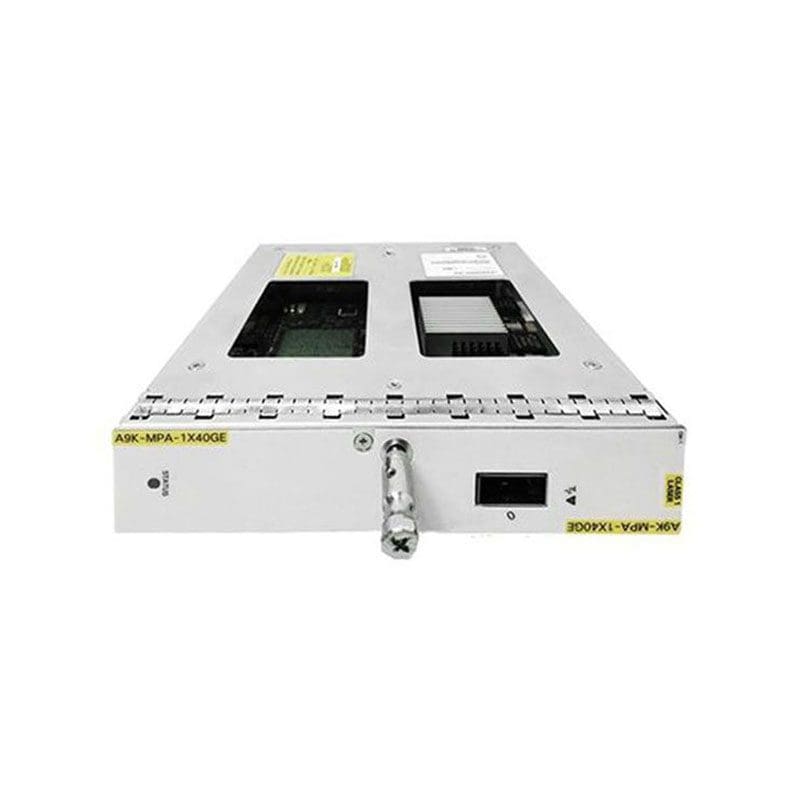

Refurbished A9K-MPA-1X40GE Technical Specification
Cisco 1-port 40-Gigabit Ethernet Modular
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco, Cisco ASR 9000 Series
Model :1-port 40-Gigabit Ethernet Modular Port Adapter
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :40 Gigabit Ethernet
Data Transfer Rate :40 GBps
Features :Flow control, Full duplex capability, Layer 2 switching, Layer 3 switching, MPLS support, NetFlow, Quality of Service (QoS)
Compliant Standards :IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3x, ITU-T G.709
Interface Provided
Interfaces :1 x 40Gb Ethernet – QSFP
Slot Required
Compatible Slots :1 x expansion slot
Miscellaneous
Compliant Standards :AS/NZ 3548 Class A, BSMI Class A, CISPR 22 Class A, CSA C22.2 No. 60950-1, EN 300 386, EN 60825, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, ETSI, FCC Class A certified, FDA, GR-1089-CORE, ICES-003 Class A, IEC 60950-1, NEBS level 3, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :6.4 inch
Depth :6.7 inch
Height :1.4 inch
Weight :1.54 lbs
Service & Support
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85%
Compatibility
Compatible With :Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2
