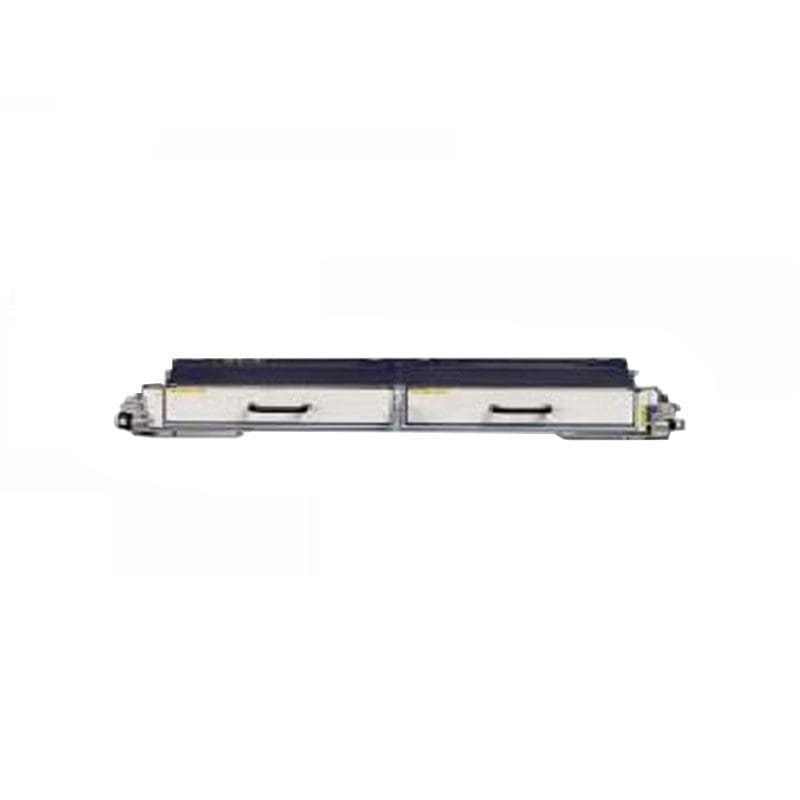

Refurbished A9K-MOD80-SE Technical Specification
Cisco Mod80 Modular Line Card
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Features Flow control, modular design, MPLS support, full duplex mode, Quality of Service (QoS), NetFlow, Advanced Forward Error Correction, Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards IEEE 802.3, IEEE 802.1x, IEEE 802.1ag, ITU-T G.709
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x expansion slot
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, NEBS, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, EN 300 386
Dimensions & Weight
Width 14.5 in
Depth 22.4 in
Height 1.7 in
Weight 17.48 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Compatibility Information
Designed For Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
