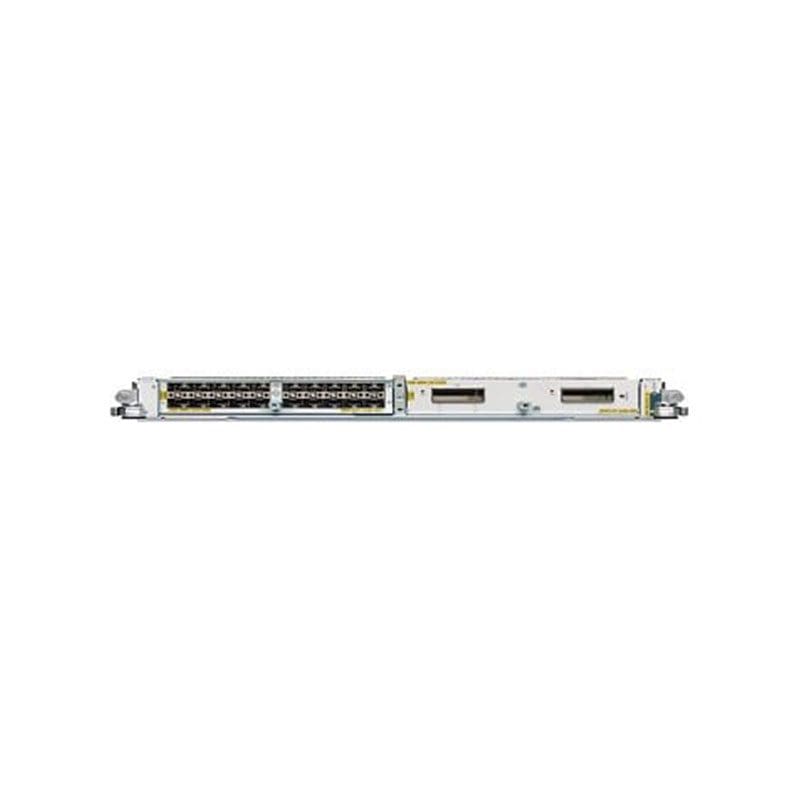

Refurbished A9K-MOD400-SE Technical Specification
Cisco Mod400 Modular Line Card
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Mod400 Modular Line Card
Model :Service Edge Optimized
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Features :Advanced Forward Error Correction, Flow control, Full duplex mode, IP Service Level Agreements (IP SLAs), Modular design, MPLS support, NetFlow, Quality of Service (QoS), Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards :IEEE 802.1ag, IEEE 802.3, IEEE 802.3ah, ITU-T G.709, ITU-T Y.1731
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
System Requirements
OS Required :Cisco IOS XR 5.2.3
Miscellaneous
Color Category :Gray
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, EMC, EN 300 386, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, ETSI 300 019, FCC Class A certified, FDA, ICES-003 Class A, IEC 60825, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC/UL/CSA/EN 60950-1, NEBS, VCCI Class A
Dimensions & Weight
Width :14.5 inch
Depth :24.3 inch
Height :1.7 inch
Weight :20.94 lbs
Service & Support
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85%
Compatibility
Compatible With 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9910, 9912, 9922
