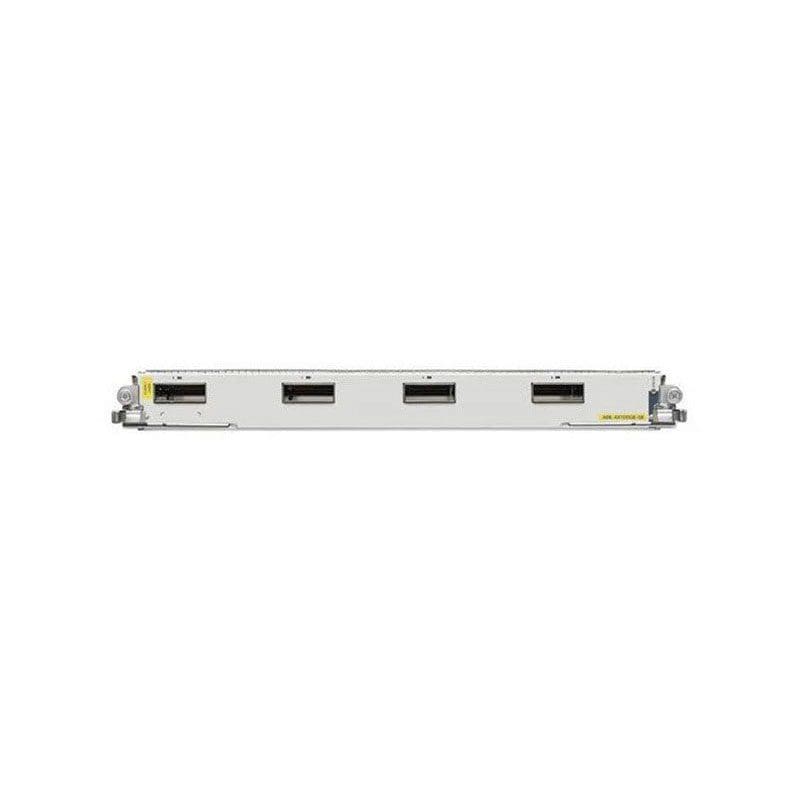

Refurbished A9K-4X100GE Technical Specification
Cisco Line Card – Expansion module
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Line Card
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Features :Flow control, Full duplex mode, Layer 3 VPN (L3VPN) support, MPLS support, NetFlow, Support for Online Insertion and Removal (OIR), Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards :IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3x
Ports
Qty :4
Type :100 Gigabit Ethernet QSFP
Interface Provided
Interfaces :4 x 100Gb Ethernet – QSFP
Miscellaneous
Color Category :Gray
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22, CISPR 32, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-6-1, EN50082-1, EN55022, EN55024, ETSI 300 019-1-1, ETSI 300 019-2-3, ETSI 300 019-3-1, FCC Class A certified, FDA, ICES-003 Class A, IEC 61000-3-2, IEC/EN 60825, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/UL/CSA/EN 60950-1, VCCI Class A
Dimensions & Weight
Width :1.6 inch
Depth :22 inch
Height :14.5 inch
Weight :0.31 ounce
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :105.8 degree Fahrenheit
Humidity Range Operating :10 – 85%
