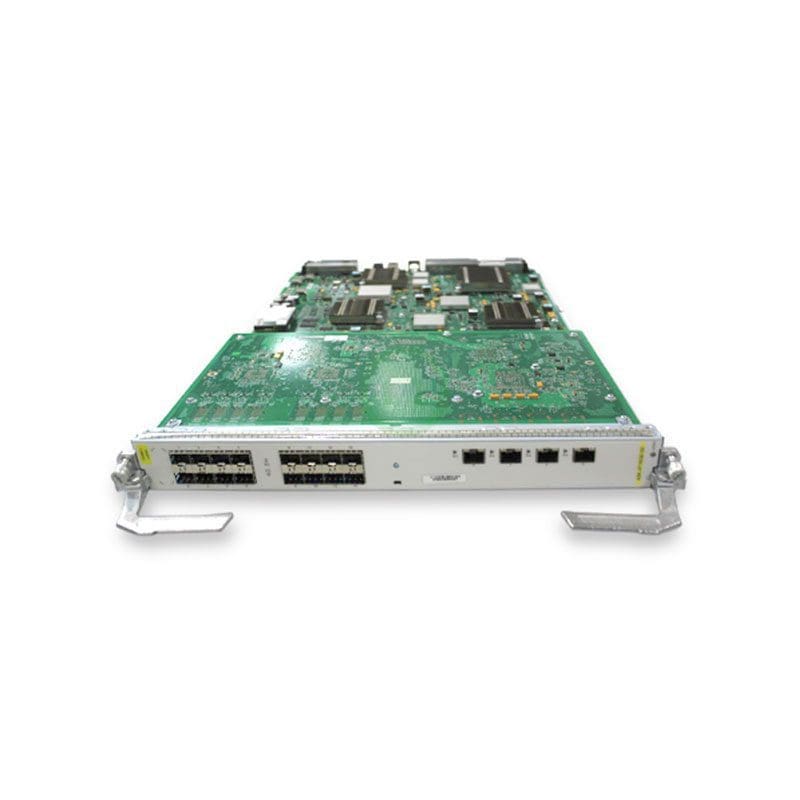

Refurbished A9K-4T16GE-SE Technical Specification
Cisco 40G Service Edge Optimized
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 10 Gigabit SFP+ x 4 + Gigabit SFP x 16
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol CLI
Features Flow control, full duplex capability, MPLS support, Quality of Service (QoS), NetFlow, Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards IEEE 802.3, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731
Expansion / Connectivity
Interfaces 4 – SFP+ ¦ 12 – SFP (mini-GBIC)
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, ETSI 300 019, EN 300386
Dimensions & Weight
Width 1.7 in
Depth 20.5 in
Height 14 in
Weight 12.19 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Compatibility Information
Designed For Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2, 9904, 9912, 9922
