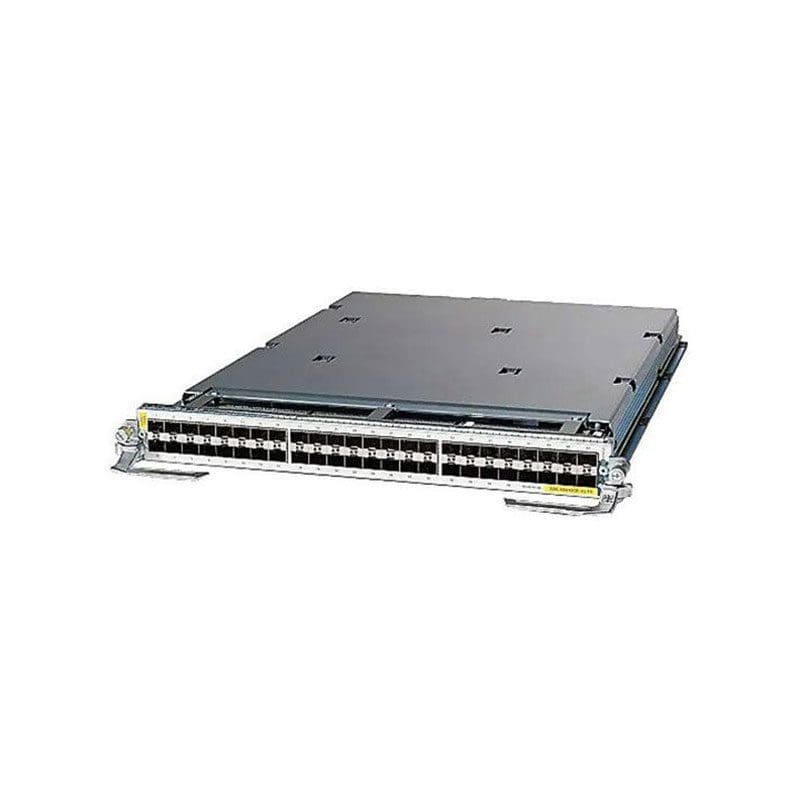

Refurbished A9K-48X10GE-1G-TR Technical Specification
Cisco Packet Transport Optimized
General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports 10 Gigabit SFP+ / SFP (mini-GBIC) x 48
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Features Flow control, full duplex capability, MPLS support, Quality of Service (QoS), NetFlow, Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731
Expansion / Connectivity
Interfaces 48 x 10GBase-X – SFP/SFP+
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EMC, ICES-003 Class A, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, VCCI Class A, ETSI 300 019, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2
Software / System Requirements
OS Required Cisco IOS XR 6.2.1
Dimensions & Weight
Width 1.6 in
Depth 22 in
Height 14.5 in
Weight 28 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Compatible With :Cisco ASR 9001, 9001-S, 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2
