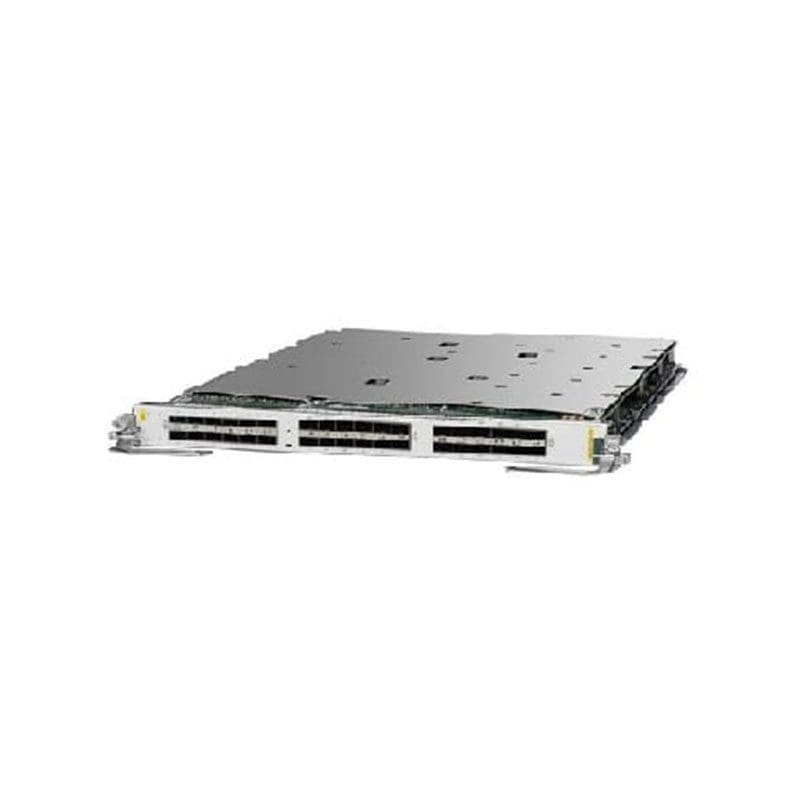

Refurbished A9K-36X10GE-TR Technical Specification
Cisco 36-Port 10GE Packet Transport
General
Device Type Expansion module – 36 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Features Flow control, full duplex capability, layer 3 switching, layer 2 switching, MPLS support, Quality of Service (QoS), NetFlow
Compliant Standards IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.709
Expansion / Connectivity
Interfaces 36 x 100Gb Ethernet – SFP+
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-4-7, FDA, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950
Dimensions & Weight
Width 1.7 in
Depth 20.5 in
Height 14 in
Weight 18.52 lbs
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
Compatibility Information
Designed For Cisco ASR 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2
