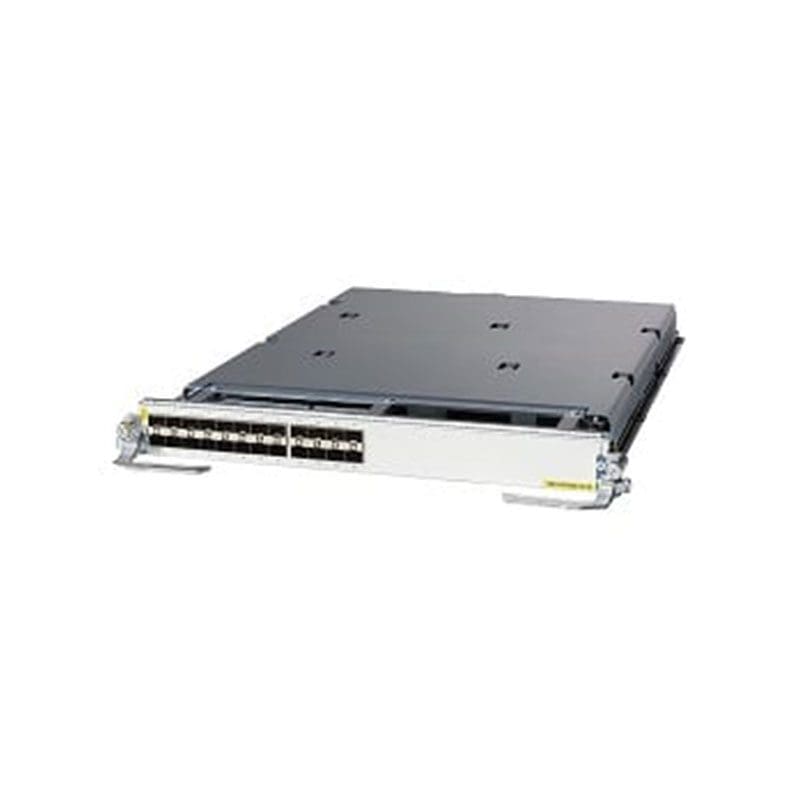

Refurbished A9K-24X10GE-1G-TR Technical Specification
Cisco ASR 9000 Series
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR 9000 Series
Model :Packet Transport Optimized Line Card
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet
Features :Flow control, Full duplex capability, MPLS support, NetFlow, Quality of Service (QoS), Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards :IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3x, ITU-T Y.1731
Ports
Qty :24
Type :10 Gigabit SFP+ / SFP (mini-GBIC)
Interface Provided
Interfaces :24 x 10GBase-X – SFP/SFP+
System Requirements
OS Required :Cisco IOS XR 6.2.1
Miscellaneous
Color Category :White
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, EMC, EN 300 386, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, ETSI 300 019, FCC Class A certified, FDA, ICES-003 Class A, IEC 60825, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/UL/CSA/EN 60950-1, VCCI Class A
Dimensions & Weight
Width :1.6 inch
Depth :22 inch
Height :14.5 inch
Weight :28 lbs
