Refurbished A99-RP2-TR Technical Specification

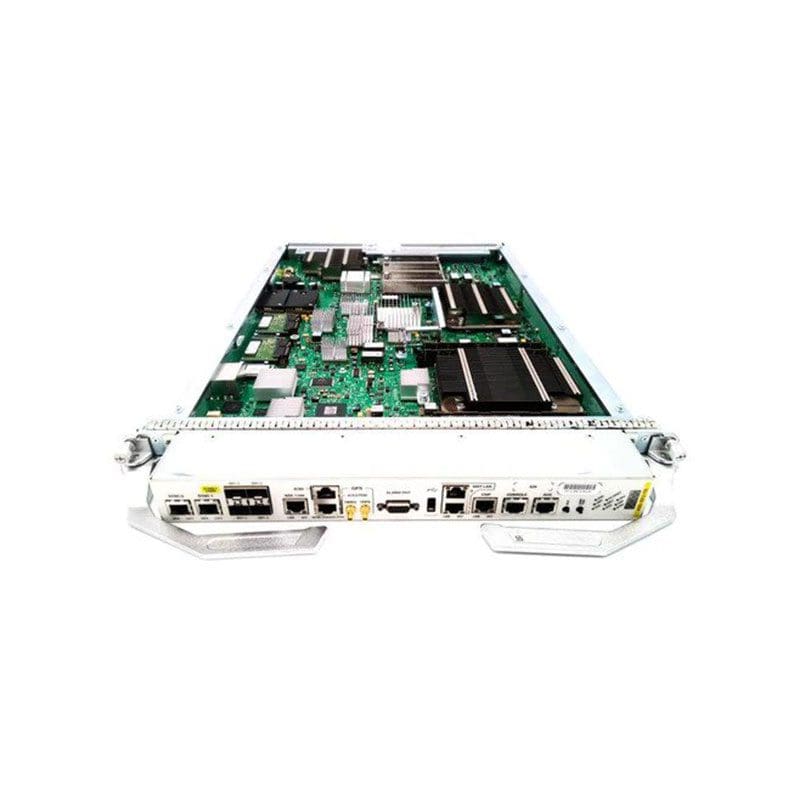

Cisco ASR 9900 Route Processor
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR 9900
Model :Route Processor 2 Optimized for Packet Transport
Packaged Quantity :1
Processor
Clock Speed :1.9 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Installed Qty :2
Capacity :32 GB
Networking
Type :Control processor
Form Factor :Plug-in module
Connectivity Technology :Wired
Features :Precision Time Protocol (PTP)
Compliant Standards :IEEE 1588-2008
Interface Provided
Interfaces :1 x alarm – DB-9, 1 x auxiliary – RJ-45, 1 x console – RJ-45, 1 x management (100Base-TX) – RJ-45, 1 x RS-232/422, 1 x USB 2.0 – Type A, 2 x 1000Base-T (management) – RJ-45, 4 x 10Gb Ethernet – SFP+
Dimensions & Weight
Width :16.9 inch
Depth :24.8 inch
Height :1.8 inch
Weight :17.79 lbs
Service & Support
Service & Support Details
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
Compatibility
Compatible With :Cisco ASR 9904, 9912, 9922
