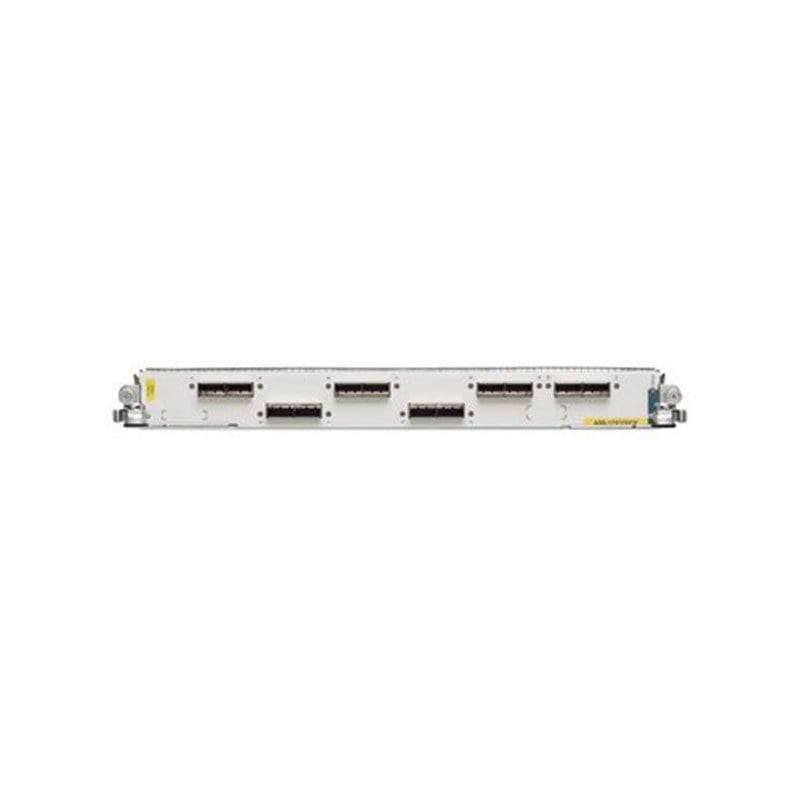

Refurbished A99-12X100GE Technical Specification
Cisco Line Card expansion module
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR 9000 Series, Cisco Line Card
Model :Line Card
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :100 Gigabit Ethernet
Data Transfer Rate :100 GBps
Features :Flow control, Full duplex capability, IPoDWDM, Layer 3 switching, MPLS support, NetFlow, Virtual Circuit Connectivity Verification (VCCV), VPN support
Compliant Standards :IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3ba
Ports
Qty :12
Type :100 Gigabit QSFP28
Interface Provided
Interfaces :12 x 100Gb Ethernet – QSFP28
System Requirements
OS Required :Cisco IOS XR 6.0.1
Miscellaneous
Color Category :Silver
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, EN 300 386, EN 60825, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN50082-1, EN55022, EN55024, ETSI 300 019, FCC Class A certified, FDA, ICES-003 Class A, IEC 60825, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ITU Y.1731, UL/CSA60950-1, VCCI Class A
Dimensions & Weight
Width :1.7 inch
Depth :20.5 inch
Height :14 inch
Weight :28.66 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85%
Compatibility
Compatible With :Cisco ASR 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
