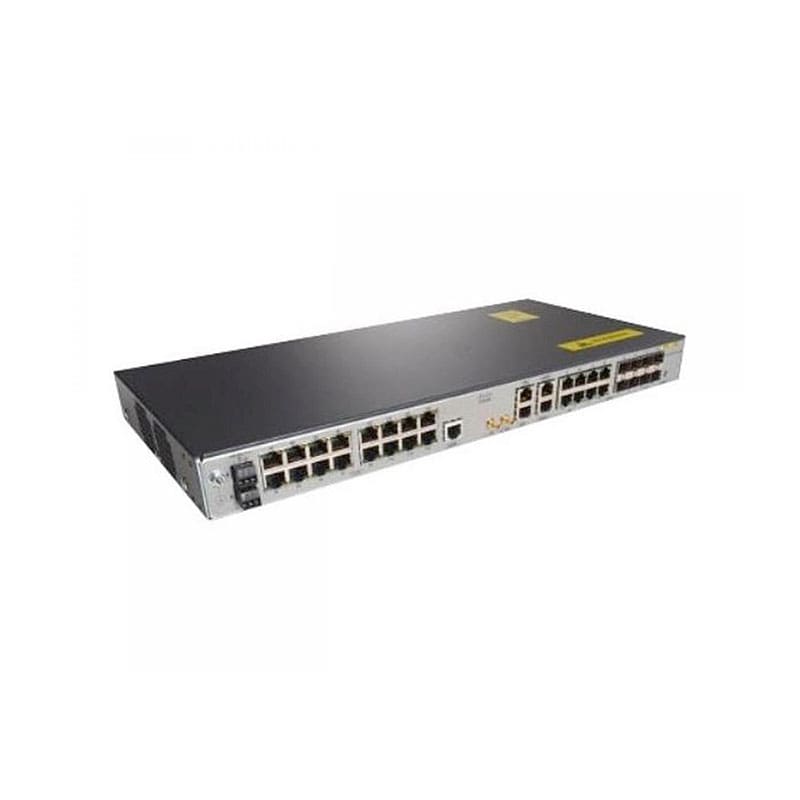

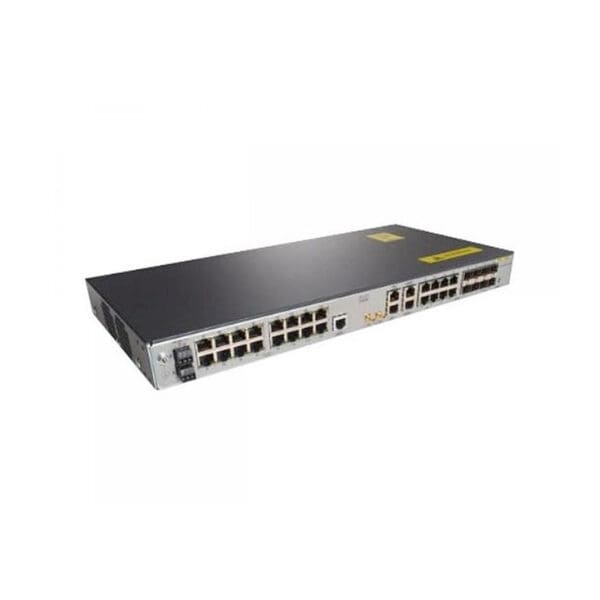

A901-6CZ-FT-D Technical Specifications
Cisco ASR 901 Series 4 x Ports 1000Base-T Router
Dimensions (H x W x D)
1.7 x 17.5 x 9.1 in. (43.2 x 444.5 x 231 mm), 1RU
Weight
8.15 lb (3.7 kg)
Memory
Flash memory: 128 MB (onboard flash)
System memory: 1 GB (DDR3)
Rack mounts
10 GE models:
19-in. rack mount option
23-in. rack mount option
ETSI rack mount option
Recessed rack mount option for 19-in. cabinets
Recessed rack mount option for 23-in. cabinets
Recessed rack mount option for ETSI cabinets
Wall mount option
Ethernet ports
4 100/1000 RJ-45 Gigabit Ethernet ports
4 x 1 SFP Gigabit Ethernet ports
4 x 1 Gigabit Ethernet Combo ports
2 x 10 Gigabit Ethernet ports (10 GE models only)
TDM ports
8 T1/E1
Console port
1 (up to 115.2 Kbps)
USB port
1 supported on the following chassis models:
External timing ports
BITS input, 10-MHz input/output, 1 PPS input/output, ToD interface, and SyncE
Fans
10 GE models: three fans, with redundancy
Air flow
Left to right airflow
Cabling
Front-panel access cabling and LED indicators
Power supplies
2 power supplies (DC only); module redundancy: 1:1
