Refurbished A901-4C-FT-D Technical Specification

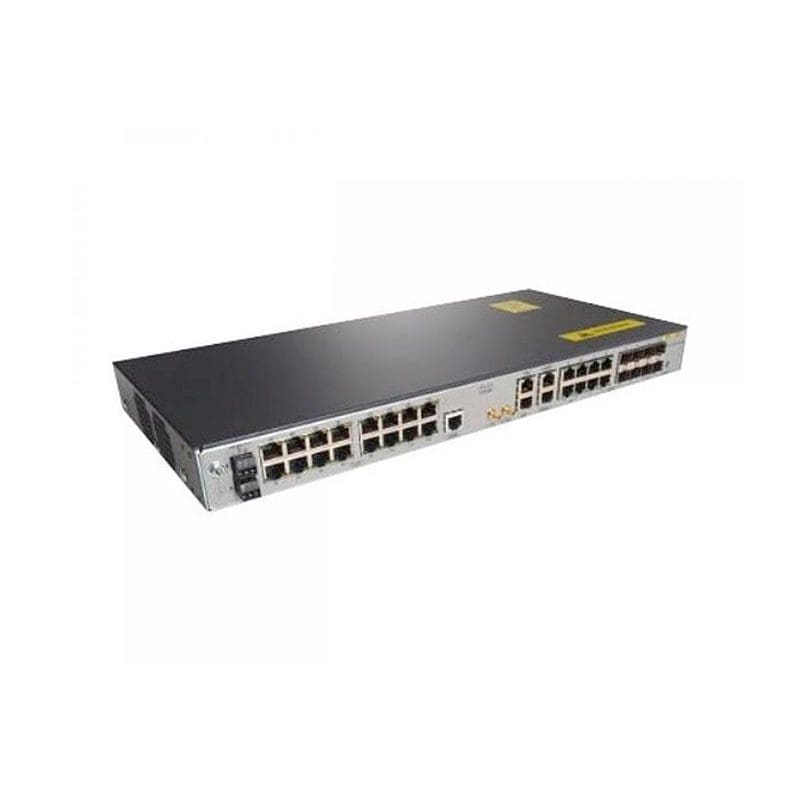

Cisco ASR 901 Router ack-Mountable
Device Type Router
Enclosure Type Rack-mountable – 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, PPP, TDM, MLPPP
Routing Protocol OSPF, IS-IS, BGP, static IP routing, ECMP, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol SNMP, CLI
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features MPLS support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MPLS VPN, SSH support, Equal-Cost Multipath (ECMP)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, NEBS level 3, CISPR 22 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, VCCI Class A ITE, EN55024, EN55022 Class A, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386
RAM 1 GB DDR3 SDRAM
Flash Memory 128 MB
Line Properties
Line Rate T-1/E-1
Framing Format G.703
Expansion / Connectivity
Interfaces WAN: 16 x T1/E1 ¦ 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 4 x SFP (mini-GBIC)
Power
Power Device Internal power supply
