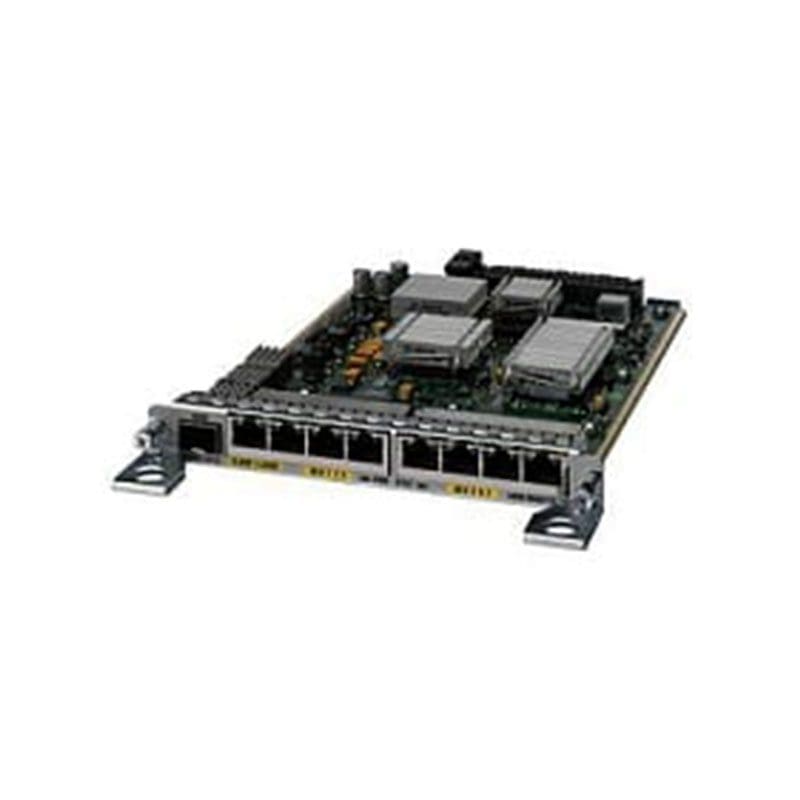

Refurbished A900-IMA8T1Z Cisco Interface Module Expansion Module

Refurbished A900-IMA8T1Z Overview

Cisco ASR 900 Series Ethernet interface modules are designed to give customers a high degree of flexibility and value. All Ethernet interface modules share a common core that supports time stamping on the module for Y.1731 operations, administration, and maintenance (OAM) delay measurement functions to achieve precise results for one-way and two-way delay measurement. The modules also provide time-stamping functions for the IEEE 1588-2008 protocol. These time stamps help ensure that the Cisco ASR 900 Series Aggregation Services routers achieve outstanding results when deploying IEEE 1588-2008 protocols for frequency and phase synchronization. Not all customers will deploy IEEE 1588-2008 for synchronization; therefore, the Ethernet interface modules also support input and output frequency synchronization using synchronous Ethernet

$2,000

Buy Now
Availability: In Stock
SKU:A900-IMA8T1Z-RF
Brand:

Refurbished A900-IMA8T1Z Technical Specification

Cisco Interface Module Expansion Module

Device Type Expansion module
Form Factor Plug-in module
Ports Gigabit Ethernet x 8 + 10 Gigabit SFP+ x 1
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-X
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE, 10 GigE
Designed For P/N: A900-RSP2A-128, A900-RSP2A-128=, A900-RSP2A-128-RF, A900-RSP2A-128-WS, A900-RSP3C-200-S, A900-RSP3C-200-S=, A900-RSP3C-400-S, A900-RSP3C-400-S=

Extended Specification
General
Device Type Expansion module
Form Factor Plug-in module
Compatibility Information
Designed For P/N: A900-RSP2A-128, A900-RSP2A-128=, A900-RSP2A-128-RF, A900-RSP2A-128-WS, A900-RSP3C-200-S, A900-RSP3C-200-S=, A900-RSP3C-400-S, A900-RSP3C-400-S=
Expansion / Connectivity
Interfaces 8 x 1000Base-T – RJ-45 ¦ 1 x 10GBase-X – SFP+
Networking
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-X
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Ports Gigabit Ethernet x 8 + 10 Gigabit SFP+ x 1
