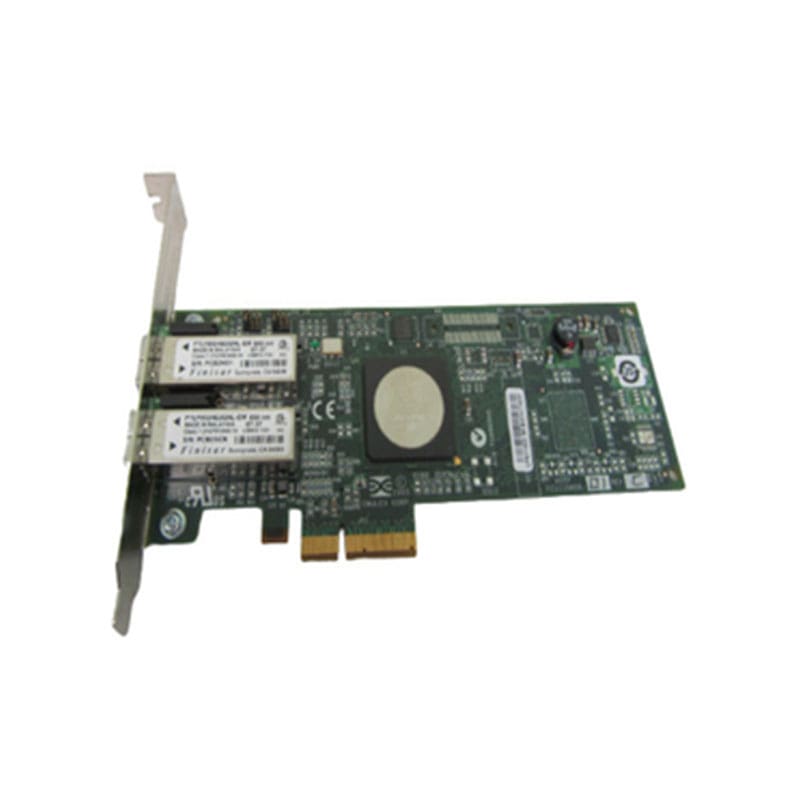

A8003A HPE 4GB Dual Port PCI-E FC Host Bus Adapter

A8003A Overview

The HPE A8003A 4GB Dual Port PCI-E FC Host Bus Adapter is a hardware component that allows servers to connect to Fibre Channel (FC) storage area networks (SANs). It is a high-performance, reliable, and cost-effective solution for businesses that require high-speed data transfer rates between their servers and storage systems.
A Fibre Channel Host Bus Adapter (HBA) is a hardware component that connects a server to a Fibre Channel storage area network (SAN). It is responsible for transferring data between the server and the storage system. HBAs are essential for high-speed data transfer rates and low-latency access to storage resources. There are several types of HBAs available in the market, including single-port, dual-port, and quad-port adapters.

$33

Buy Now
Availability: In Stock
SKU:A8003A
Brand:

A8003A Technical Specifications

HPE 4GB Dual Port PCI-E FC Host Bus Adapter

Brand Name: HPE
Model Number or SKU# A8003A
Device Type: Host bus adapter
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express x4
PCI Specification Revision: PCIe 1.0a
Bus Voltage: 3.3 V
Compliant Standards: RoHS
Networking
Ports: 4Gb Fibre Channel x 2
Connectivity Technology: Wired
Data Link Protocol: 4Gb Fibre Channel
Fibre Channel: FC-Tape
Data Transfer Rate: 4.24 Gbps
Features: Auto-negotiation, full duplex mode
Expansion & Connectivity of Host Bus Adapter
Interfaces: 2 x 4Gb Fibre Channel – LC multi-mode – x 2
Compatible Slots: 1 x PCI Express x4
