9H83R Technical Specifications

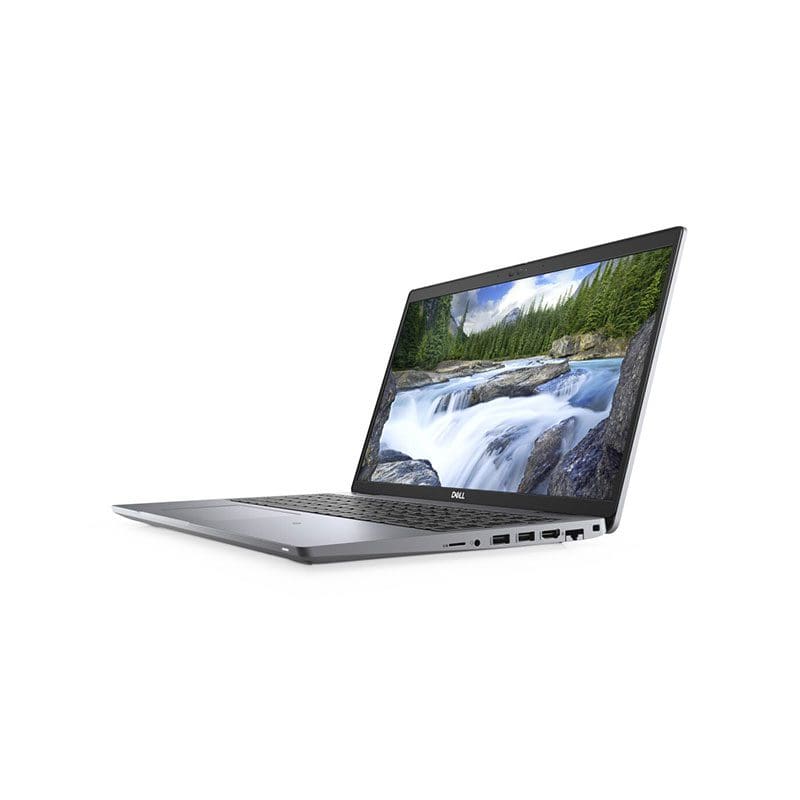

Dell Latitude 5520 15.6″ Core i5 1145G7 vPro 16 GB RAM 256 GB SSD
Manufacturer Part Number : 9H83R
Manufacturer : Dell
Operating System Windows 10 Pro (64-Bit)
Performance
Processor Intel Core i5-1145G7 (11th Gen)
CPU 2.6 to 4.4 GHz Quad-Core
L3 Cache 8 MB
Memory Type 3200 MHz DDR4
Total Installed Memory 16 GB
Memory Configuration 1 x 16 GB (User-Replaceable)
Maximum Memory Capacity 64 GB
Memory Slot Type SO-DIMM
Memory Slots 2 (1 Available)
ECC Memory No
Graphics Type Integrated
GPU Intel Iris Xe
Display
Panel Type IPS-Type LCD
Size 15.6″
Aspect Ratio 16:9
Resolution 1920 x 1080
Touchscreen No
Maximum Brightness 250 cd/m2
Color Gamut 45% NTSC
Refresh Rate 60 Hz
Contrast Ratio 700:1
Response Time 25 ms
Viewing Angle (H x V) 160 x 160°
Storage and Expansion
SSD Slots 1 x M.2 2230 PCIe (Unspecified Interface) x4 (In Use)
Total Installed Capacity 256 GB
Solid State Storage 1 x 256 GB M.2 NVMe PCIe
Optical Drive None
I/O
Ports 2 x USB-A 3.0 / 3.1/3.2 Gen 1
USB Type-C 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery)
Display 1 x HDMI 2.0
Audio I/O 1 x 1/8″ / 3.5 mm Headphone/Microphone Input/Output
Built-In Speakers 2 x 2 W
Built-In Microphones 2
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC
Communications
Ethernet 1 x RJ45 (Gigabit)
Wi-Fi Wi-Fi 6 (802.11ax)
MU-MIMO Support 2 x 2
Bluetooth 5.1
5G NR None
GPS None
NFC No
Webcam User-Facing: 720p
Battery
Battery Chemistry Lithium-Ion
Capacity 4-Cell: 63 Wh
Keyboard & Mouse
Keyboard 99-Key Backlight, Number Pad
Pointing Device TouchPad
