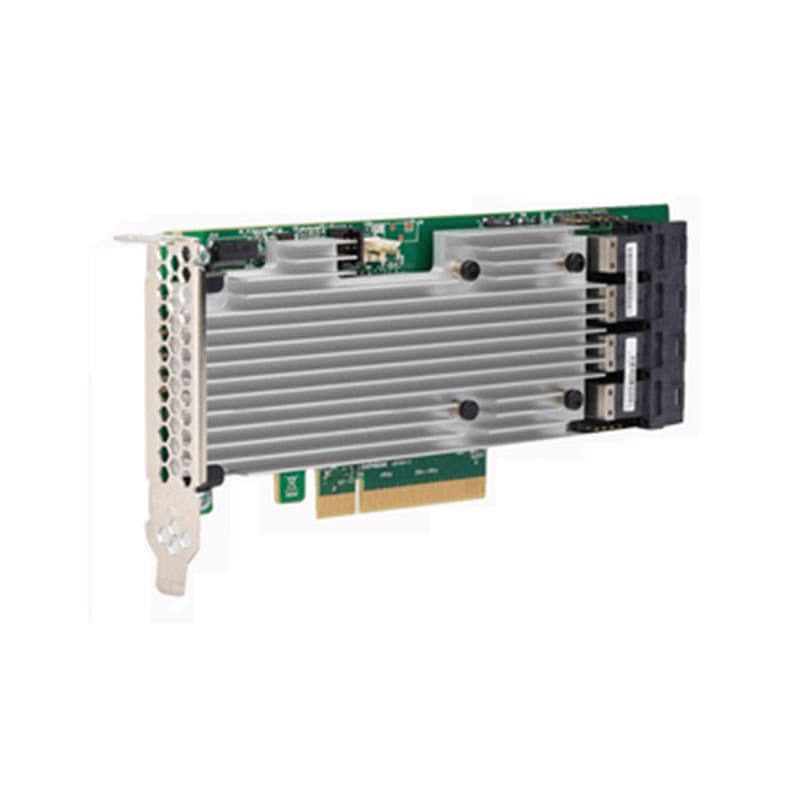

9361-16I Technical Specifications
Broadcom 16 Internal Ports Raid 0/1/5/50/6 PCI-exp 3.0 2g Ddriii Md2 12GBPS SAS Controller
Manufacturer: Broadcom
Product Type: Controller
Product Name: SAS-SATA
Key Features
Raid-on-chip Controller:: Sas3316 Dual Core Raid On Chip (roc)
Cache Protection : Optional Cachevault Module (cvpm02)
Physical Dimensions : Low Profile 6.127″ X 2.712″
Host Bus Type: x8 Lane Pci Express® 3.0
Cache Memory : 2gb 1866mhz Ddr3 Sdram
Internal Ports : 16
Data Transfer Rates: Up To 12gb/s Per Port
Devices Supported : Up To 240 Sata And/or Sas Devices
Internal Connectors : 4 Mini-sas Hd Sff8643
