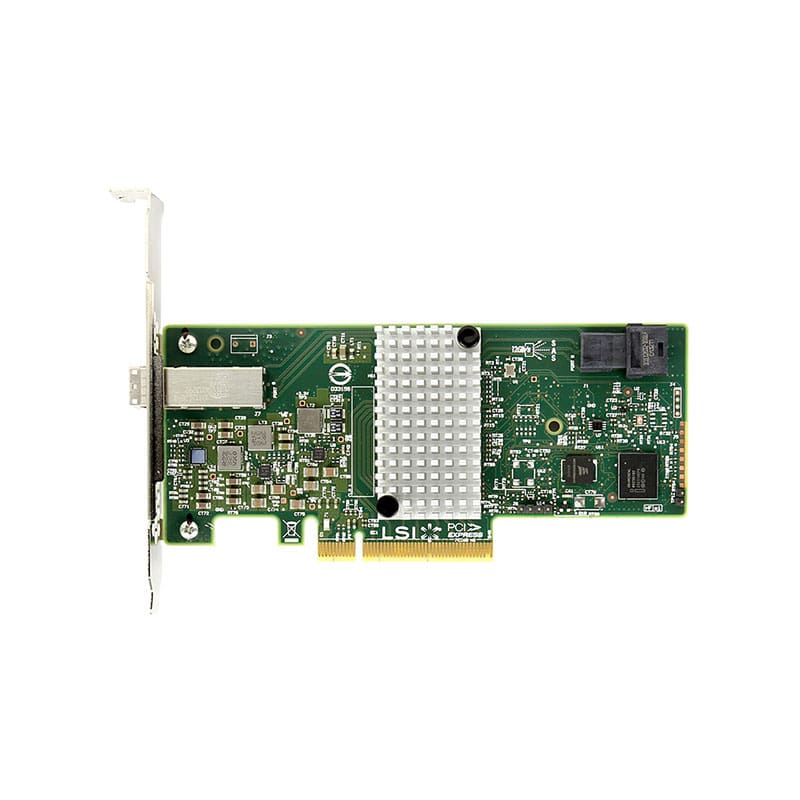

9300-4I4E Broadcom Single Sas 4 Ports 12gb/s Pci-express

9300-4I4E Overview

A SAS Host Bus Adapter (HBA) is a device that connects a computer system to one or more SAS storage devices. It is essentially a bridge between the computer system and the SAS storage devices, providing a high-speed connection that allows data to be transferred quickly and efficiently. The SAS HBA is designed to be highly reliable and scalable, making it an ideal solution for businesses that require high-performance storage systems.
The Broadcom 9300-4I4E provides four SAS ports, each capable of supporting up to 12Gb/s of data transfer speed. This means that the adapter can support up to 256 SAS or SATA devices, providing a highly scalable solution for businesses that require large amounts of storage.

$260

Buy Now
Availability: In Stock
SKU:9300-4I4E
Brand:

9300-4I4E Technical Specifications

Broadcom Single Sas 4 Ports 12gb/s Pci-express 3.0 X8 Sas Host Bus Adapter

Manufacturer: Broadcom
Model Number or SKU# 9300-4I4E
Product Type: Controller
Product Name: Host Bus Adapter
Key Features for 4 Ports Adapter
Host Bus Type X8 Lane Pci Express 3.0
Physical Dimensions Low Profile (2.6″ X 6.0″)
Devices Supported 1024 Non-raid Sas/sata Devices
External Connectors1 Mini-sas Hd Sff8644
Fusion Mpt Support Fusion Mpt 2.5
Internal Connectors1 Mini-sas Hd Sff8643
Internal Ports 4
Operating Temperature 0°c To 55°c
