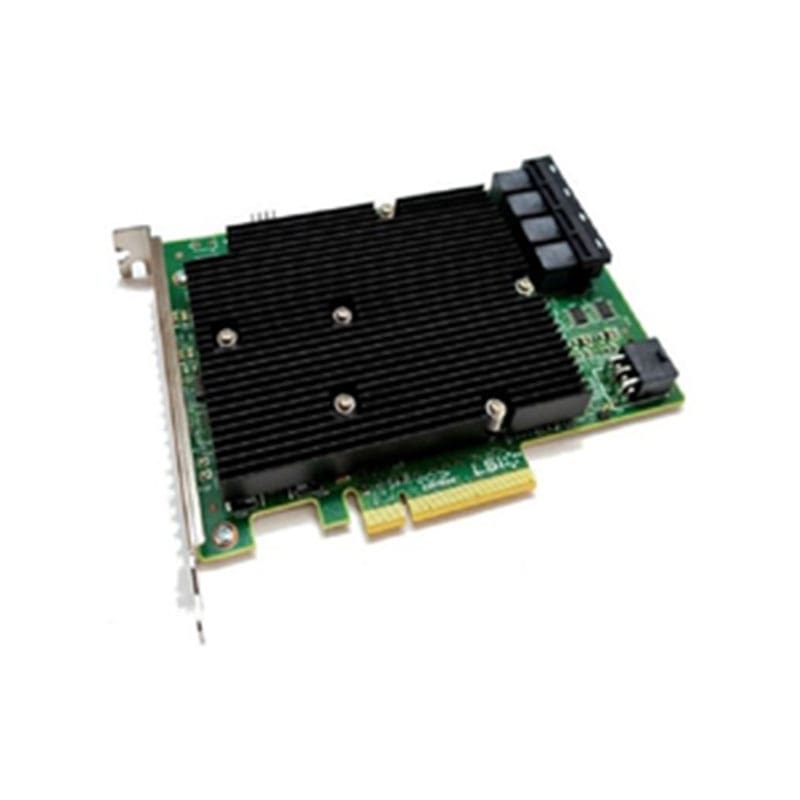

9300-16I Technical Specifications
Broadcom PCI-E 3.0 SAS/Sata 12Gb/s Host Bus Adapter
Manufacturer: Broadcom
Model Number or SKU# 9300-16I
Product Type: SAS Controller
Technical Information of PCI-E Adapter
Host Bus Type : X8 Lane Pci Express® 3.0
Physical Dimensions : 4.4 X 6.1
Internal Ports : 16
Cable Support : passive Copper, Active Optical
Data Transfer Rates : 12gb/s Sas 3.0 Compliant
Devices Supported : 1024 Non-raid Sata/sata Devices Per Controller
Fusion Mpt Support : fusion Mpt™ 2.5
I/o Controller : 2 Sas 3008
Internal Connectors : 4 Mini-sas Hd Sff8643
Mtbf : >2,500,000 Hours
Operating Humidity : 5% To 90% Non-condensing
Operating Temperature : 0°c To 55°c
