9211-4I Technical Specifications

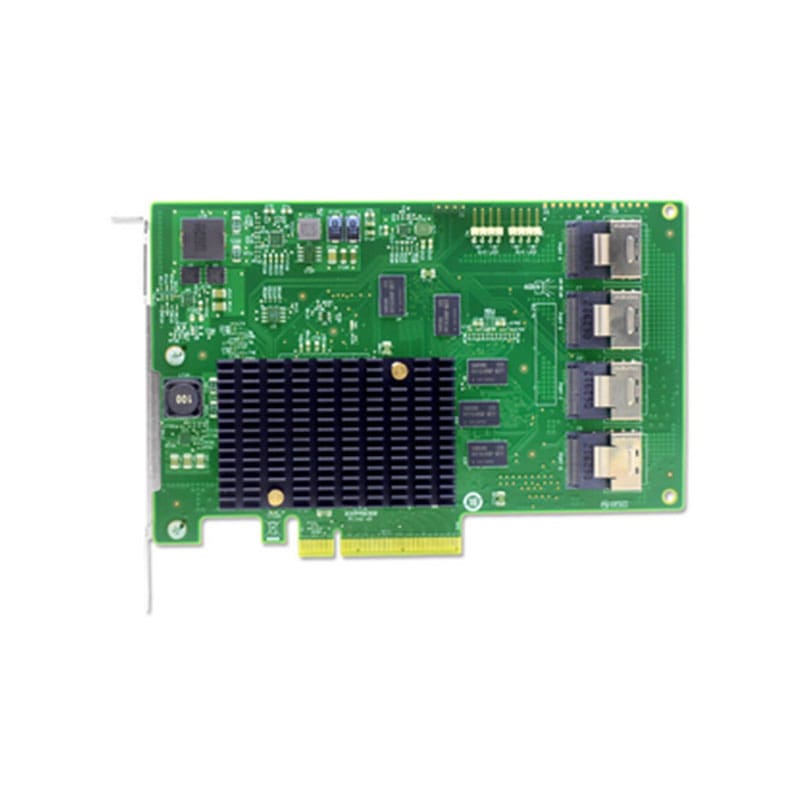

Lsi Logic 6Gb 4 Port PCI Express X4 Sas Sata Raid Controller Card
Manufacturer: Lsi Logic
Part Number or SKU# 9211-4I
Product Type: Controller
Product Name: SAS-SATA
Specifications
Controller Interface Type: Serial Attached Scsi
Bus Type: Pci Express X4
Data Transfer Rate: 6gb/s Per Port
Raid Level: Raid 0, Raid 1, Raid 1e, Raid 10
Supported Drive: Sas And Sata Hdds, Ssds, And Tape Drives
Drive Support: Up To 256 Physical Devices
Form Factor: Low-profile Plug-in Card
Platform Support: Pc
Ports: 1 X Sff-8087 Mini Sas 600 – Serial Attached Scsi Internal
Dimensions
Width: 6.4 Inch
Depth: 10.7 Inch
Height: 2.0 Inch
