Home›Controllers›LSI-Logic Controllers›9201-16E LSI Logic 6GB/S 16-Ports SAS/SATA Controller PCI-E
Lsi-Logic-9201-16E

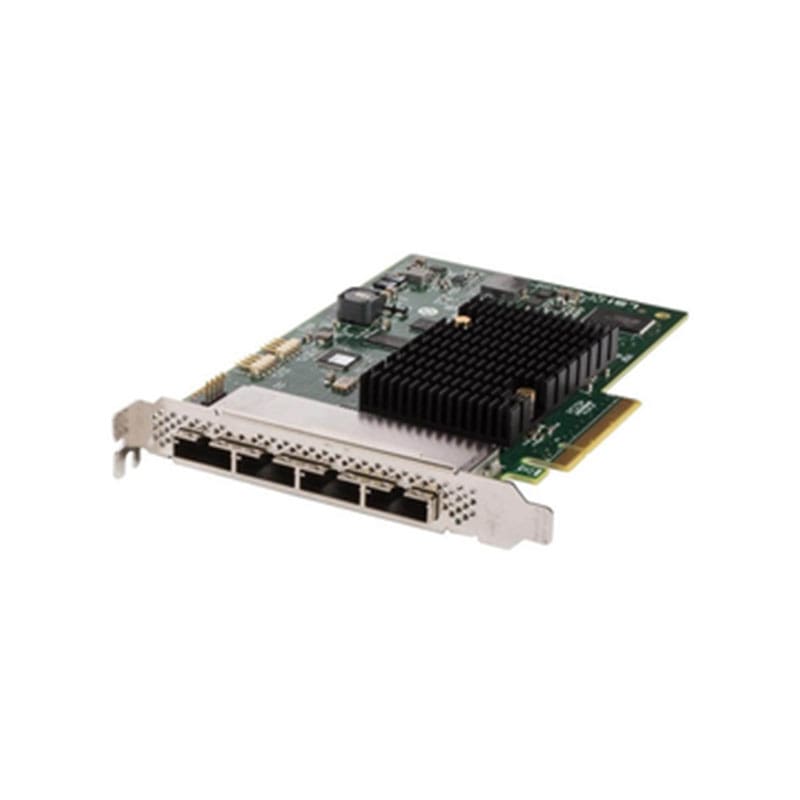

9201-16E LSI Logic 6GB/S 16-Ports SAS/SATA Controller PCI-E

9201-16E Overview

The LSI Logic 9201-16E supports RAID levels 0, 1, 5, 6, 10, 50, and 60, providing a range of data protection options for users. RAID 0 offers improved performance through data striping, RAID 1 provides mirroring for data redundancy, RAID 5 uses parity to protect against a single drive failure, RAID 6 uses double parity for protection against two drive failures, RAID 10 combines striping and mirroring for high performance and data redundancy, RAID 50 uses a combination of RAID 5 and RAID 0 for improved performance and data protection, and RAID 60 uses a combination of RAID 6 and RAID 0 for enhanced performance and data protection against multiple drive failures.

$80

Buy Now
Availability: In Stock
SKU:9201-16E
Brand:

9201-16E Technical Specifications

LSI Logic 6GB/S 16-Port Peripheral Component Interconnect Express (PCIE) 2.0 X8 Serial-Attached SCSI (SAS) Serial Advanced Technology Attachment (SATA) Controller

Manufacturer: LSI Logic
Part Number or SKU# 9201-16E
Type: Controller
Sub-Type: SAS-SATA
Technical Information of PCI-E Card
Device Type: SAS Raid Controller
Controller Interface Type: Serial Attached SCSI
Bus Type: PCI Express X8
Data Transfer Rate: 6GB/S Per Port
Supported Devices: SAS and SATA HDDs, SSDs, and Tape Drives
Max Storage Devices Qty: Up to 256 Physical Devices
Raid Levels: Raid 0, Raid 1, Raid 10, Raid 1e
Ports: 2 x SFF-8087 Mini – Serial Attached SCSI Internal
Form Factor: Low-Profile Plug-In Card
