90Y8953 Technical Specifications

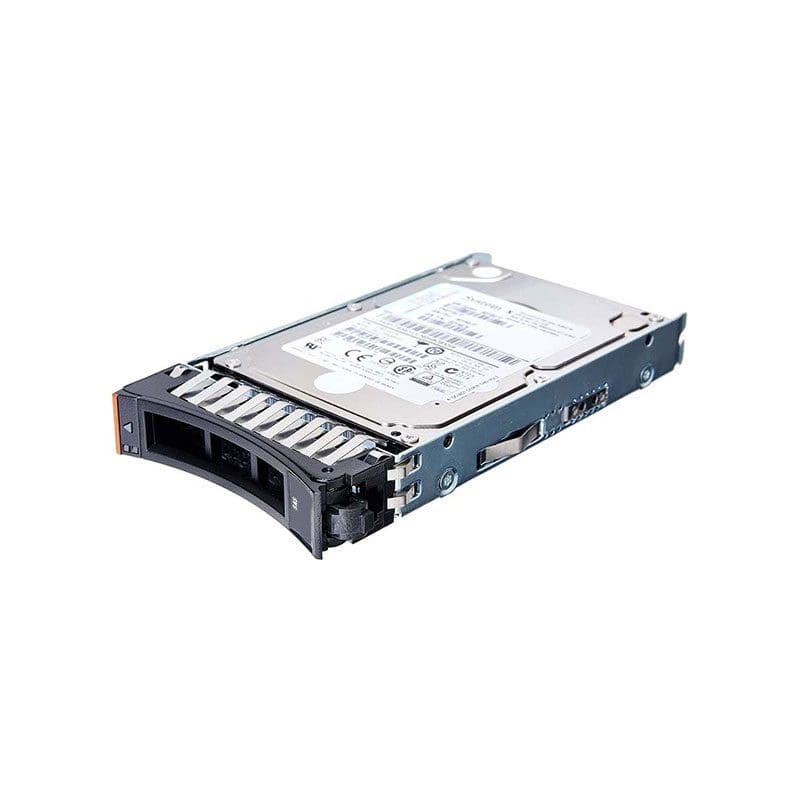

IBM 500GB 7.2K 6Gbps 2.5″ SAS HDD 90Y8954 90Y8957 ST9500620SS w/ Tray
Main Specifications:
Product Description : Ibm – Hard Drive – 500 Gb – Sas 6gb/s
Type : Hard Drive – Hot – Swap – Nearline
Capacity : 500 Gb
Form Factor : SFF
Size : 2.5 Inch
Interface : Sas 6gb/s
Data Transfer Rate : 600 Mbps
Spindle Speed : 7200 Rpm
Features : Protection Information (pi), S.m.a.r.t.
Dimensions (wxdxh) : 4 In X 5.8 In X 1 In
Weight : 1.52 Lbs
Designed For : Bladecenter Hs23 7875 (2.5), System X3100 M5 (2.5), X3300 M4 (2.5), X3500 M4 (2.5), X3530 M4 (2.5), X3550 M4 (2.5), X3650 M4 (2.5), X3650 M4 Hd (2.5), X3750 M4 (2.5)
Extended Specifications :
Device Type : Hard Drive – Hot-swap – Nearline
Capacity : 500 Gb
Form Factor : SFF
Size : 2.5 Inch
Interface : Sas 6gb/s
Features : Protection Information (pi), S.m.a.r.t.
Physical :
Width : 4 In
Depth : 5.8 In
Height : 1 In
Weight : 1.52 Lbs
Performance :
Drive Transfer Rate : 600 Mbps (external)
Spindle Speed : 7200 Rpm
Expansion & Connectivity:
Interfaces : 1 X Sas 6 Gb/s
Compatible Bays : 2.5 Sff
Environmental Parameters :
Min Operating Temperature : 41 °f
Max Operating Temperature : 140 °f
