901297 Technical Specifications

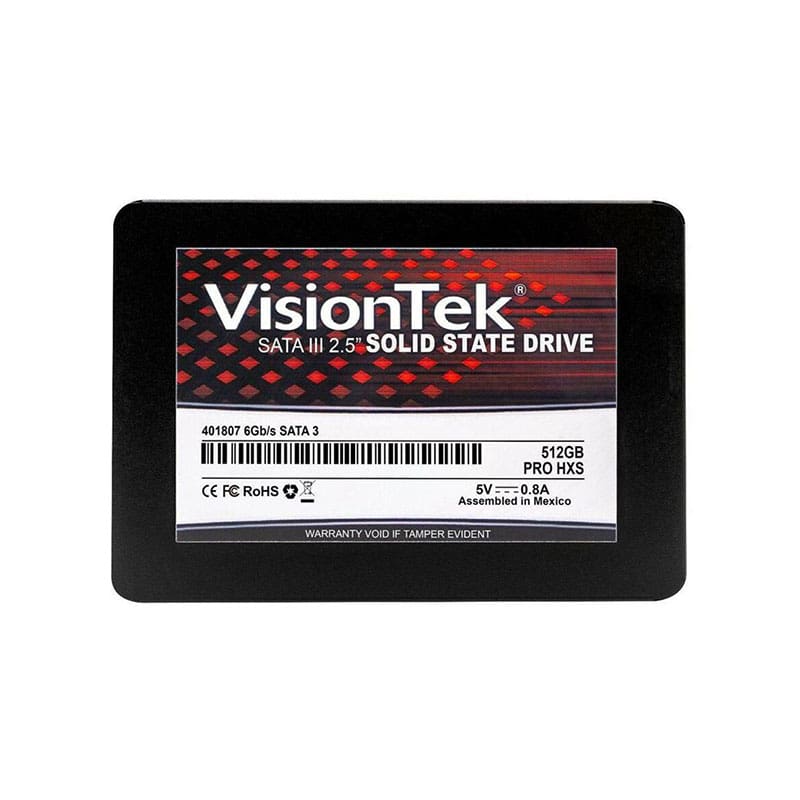

VisionTek PRO HXS 512GB TLC SATA 6Gbps 2.5-inch Internal SSD
Brand VisionTek
Product Line VisionTek
Model PRO HXS
Manufacturer Visiontek
Storage
Bytes per Sector 512
Compliant Standards
S.M.A.R.T.
Data Transfer Rate (Hard Drive) 600 MBps
Form Factor (Short) 2.5″
Form Factor (Short) (metric) 6.4 cm
Hard Drive Capacity 512 GB
Hard Drive Features
DEVSLP low-power mode, DRAM cache, LDPC error correction, Native Command Queuing (NCQ), Silicon Motion SM2258HX controller, SLC cache, StaticData Refresh Technology, Temperature sensor, TRIM support
Hard Drive Type
Internal hard drive
HD Interface
Serial ATA-600
Max Internal Data Transfer Rate
560 MBps
Max Write Transfer Rate
520 MBps
NAND Flash Memory Type
3D triple-level cell (TLC)
Storage Interface
Serial ATA-600
4KB Random Read
75000 IOPS
4KB Random Write
81000 IOPS
Connectivity
Interface Provided
1 x SATA 6 Gb/s
Technical Information
Compatible Bay 2.5″
Hard Drive Form Factor 2.5″
Hard Drive Form Factor (metric) 6.4 cm
Product Information
Packaged Quantity 1
Product Type
Solid state drive
Dimensions & Weight
Height 0.3 inch
