8P6GPCIESATACARD Technical Specifications

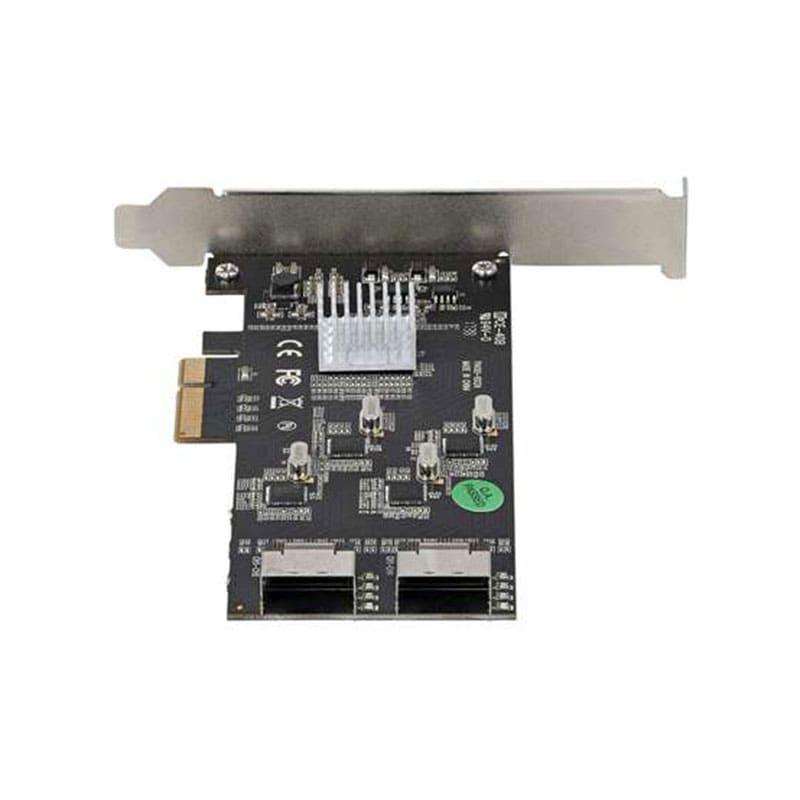

StarTech.com 8 Port SATA PCIE Card 6GBPS SATA with 4 Control
Manufacturer Part Number: 8P6GPCIESATACARD
Product Type: SATA Controller
Maximum Data Transfer Rate: 5.86 Gbit/s
RAID Supported: No
Total Number of SATA Ports: 8
Form Factor: Plug-in Card
Device Supported: Server
Controller Type: Serial ATA/600
Host Interface: PCI Express 2.0 x4
Environmentally Friendly: Yes
SAS Connector Details: 2 SFF-8087 (36 Pin, Internal Mini-SAS)
Number of SATA Ports (Internal): 8
Country of Origin: China
Height: 0.6″
Width: 2.7″
Length: 5.9″
Packaged Quantity: 1
Platform Supported: PC, Mac, Linux
