Refurbished 877752-B21 Technical Specifications

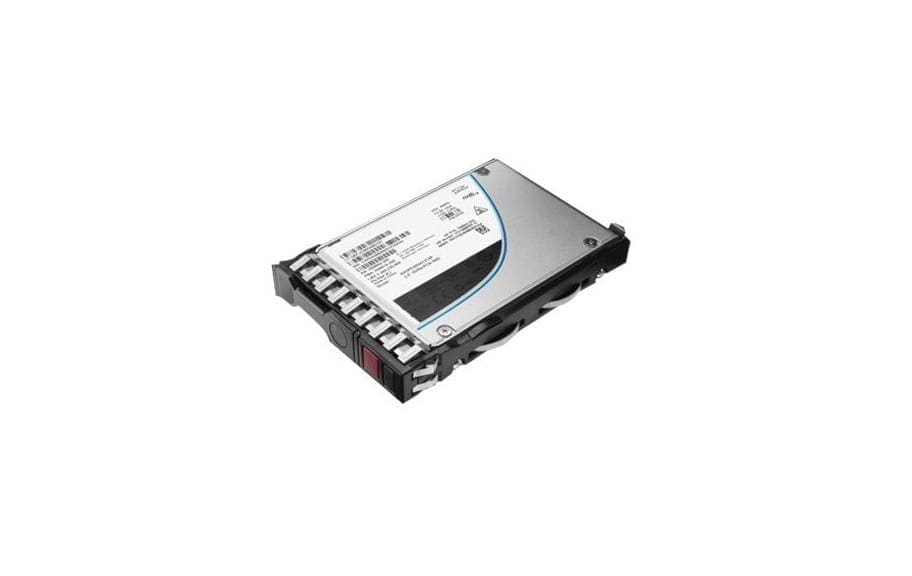

HPE 960GB SATA 6GBPS 2.5inch SFF Hot Swap Read Intensive SC Digitally Signed Firmware Solid State Drive
MAIN SPECIFICATIONS:
Product Description : Hpe Read Intensive – Solid State Drive – 960 GB – SATA 6GB/S
Type : Solid State Drive (SSD) – Hot Swap
Capacity : 960GB
Nand Flash Memory Type : Multi-Level Cell (MLC)
Form Factor : 2.5 inch SFF
Interface : SATA 6Gb/s
Data Transfer Rate : 600 MBPS
Features : Digitally Signed Firmware, Hpe Smartssd Wear Gauge
Dimensions (WXDXH) : 0.3 IN
Bundled With : Hpe Smart Carrier
Designed For : Proliant DL120 GEN9, DL160 GEN9, DL180 GEN9, DL20 GEN9, DL360 GEN10, DL360 GEN9, DL380 GEN9, DL60 GEN9, DL80 GEN9, ML110 GEN9, ML150 GEN9, ML30 GEN9, ML350 GEN9
EXTENDED SPECIFICATIONS:
Device Type : Solid State Drive – Hot-Swap
Capacity : 960 GB
Nand Flash Memory Type : Multi-Level Cell (MLC)
Form Factor : 2.5 SFF
Interface : SATA 6GB/S
Features : Digitally Signed Firmware, Hpe Smartssd Wear Gauge
Height : 0.3 IN
Bundled With : Hpe Smart Carrier
PERFORMANCE:
Drive Writes Per DaY (DWPD) : 1
Drive Transfer Rate : 600 MBPS (EXTERNAL)
Internal Data Rate : 500 MBPS (READ) / 330 MBPS (WRITE)
4KB Random Read : 60000 IOPS
4KB Random Write : 30000 IOPS
Maximum 4KB Random Write : 30000 IOPS
Maximum 4kb Random Read : 64000 IOPS
Average Latency : 60 µS
EXPANSION & CONNECTIVITY:
Interfaces : 1 X SATA 6 GB/S
Compatible Bay : 2.5 SFF
POWER:
Power Consumption : 1.31 Watt (Idle), 2.69 Watt (Random Read), 4.6 Watt (Random Write), 2.31 Watt (Sequential Read), 4.7 Watt (Sequential Write)
