Refurbished 877746-B21 Technical Specifications

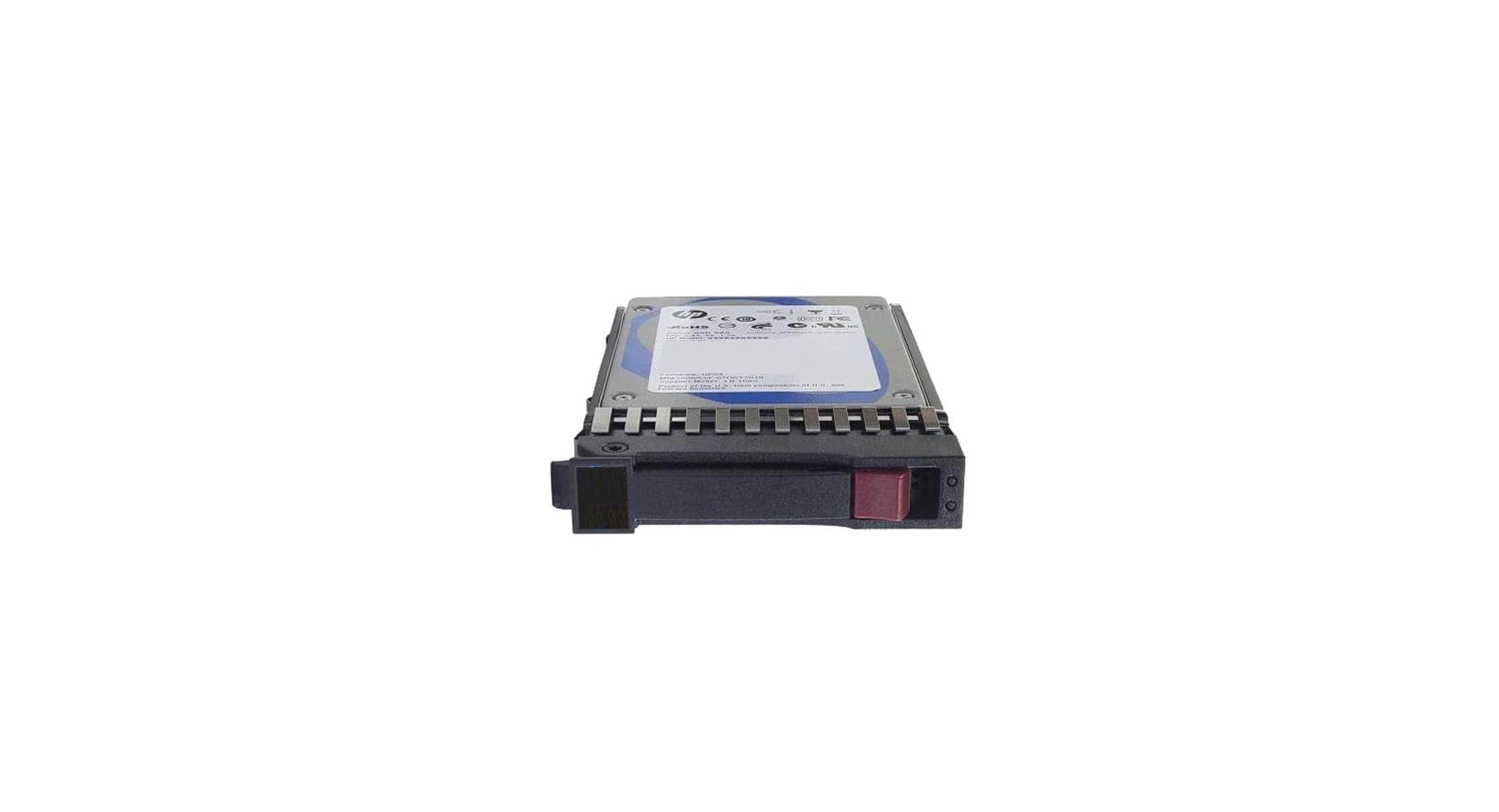

HPE 480GB SATA 6GBPS 2.5inch SFF Hot Swap SC Read Intensive Digitally Signed Firmware Solid State Drive
MAIN SPECIFICATIONS:
Product Description : Hpe Read Intensive – Solid State Drive – 480 GB – SATA 6GB/S
Type : Solid State Drive (SSD) – Hot Swap
Data Transfer Rate : 600 MBPS
Features : Digitally Signed Firmware, Hpe Smartssd Wear Gauge
Dimensions (WXDXH) : 0.3 IN
Bundled With : Hpe Smart Carrier
Designed For : Proliant DL120 GEN9, DL160 GEN9, DL180 GEN9, DL20 GEN9, DL360 GEN9, DL380 GEN9, DL580 GEN9, ML110 GEN9, ML150 GEN9, ML30 GEN9, ML350 GEN10, ML350 GEN9, XL170R GEN10, XL190R GEN10
EXTENDED SPECIFICATIONS:
Device Type : Solid State Drive – Hot-Swap
Capacity : 480GB
Nand Flash Memory Type : Multi-Level Cell (MLC)
Form Factor : 2.5 inch SFF
Interface : SATA 6Gb/s
Features : Digitally Signed Firmware, Hpe Smartssd Wear Gauge
Height : 0.3 IN
Bundled With : Hpe Smart Carrier
PERFORMANCE:
Drive Writes Per Day (DWPD) : 1
Drive Transfer Rate : 600 MBPS (EXTERNAL)
Internal Data Rate : 500 MBPS (READ) / 330 MBPS (WRITE)
4KB Random Read : 60000 IOPS
4KB Random Write : 20000 IOPS
Maximum 4KB Random Write : 20000 IOPS
Maximum 4KB Random Read : 64000 IOPS
Average Latency : 60 µS
EXPANSION & CONNECTIVITY:
Interfaces : 1 X SATA 6 GB/S
Compatible Bay : 2.5 SFF
POWER:
Power Consumption : 1.25 Watt (Idle), 2.4 Watt (Random Read), 3.6 Watt (Random Write), 2.17 Watt (Sequential Read), 3.52 Watt (Sequential Write)
