872506-001 Technical Specifications

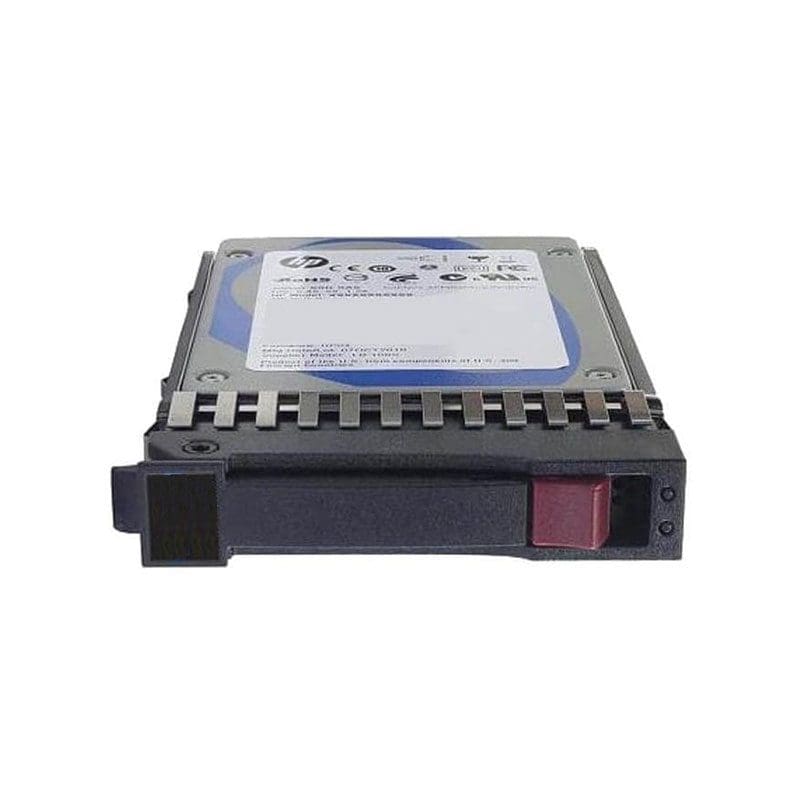

HPE 800GB SAS 12GBPS 2.5inch Sff Hot Swap Sc Mixed Use Digitally Signed Firmware Solid State Drive For Proliant Gen9 & Gen10 Servers
Main Specifications:
Product Description : HPE Mixed Use – Solid State Drive – 800 GB – SAS 12GB/S
Type : Solid State Drive (SSD) – Hot Swap
Capacity : 800GB
Nand Flash Memory Type : Multi-Level Cell (Mlc)
Form Factor : 2.5 inch Sff
Interface : SAS 12Gb/s
Data Transfer Rate : 1.2 GBPS
Features : 3 Dwpd, Digitally Signed Firmware
Dimensions (Wxdxh) : 0.6 In
Bundled With : HPE Smartdrive Carrier
Designed For : Proliant Dl160 Gen9 (3.5), Dl160 Gen9 Base (3.5), Dl160 Gen9 Entry (3.5), Dl160 Gen9 Performance (3.5), Dl360 Gen10 (2.5), Dl360 Gen10 Base (2.5), Dl360 Gen10 Entry (2.5), Dl360 Gen10 High Performance (2.5), Dl360 Gen10 Performance (2.5), Dl560 Gen10 (2.5), Dl560 Gen10 Base (2.5), Dl560 Gen10 Entry (2.5), Dl560 Gen10 Performance (2.5), Dl580 Gen9 (3.5), Dl580 Gen9 Base (3.5), Dl580 Gen9 Database (3.5), Dl580 Gen9 High Performance (3.5), Ml110 Gen9 (3.5), Ml110 Gen9 Base (3.5), Ml110 Gen9 Entry (3.5), Xl170r Gen9 (3.5)
Extended Specifications:
Device Type : Solid State Drive – Hot – Swap
Capacity : 800 GB
Nand Flash Memory Type : Multi-Level Cell (Mlc)
Form Factor : 2.5 Sff
Interface : SAS 12GB/S
Features : 3 Dwpd, Digitally Signed Firmware
Height : 0.6 In
Bundled With : HPE Smartdrive Carrier
Performance:
Drive Transfer Rate : 1.2 GBPS (External)
Internal Data Rate : 1075 MBPS (Read) / 1025 MBPS (Write)
4kb Random Read : 120000 Iops
4kb Random Write : 90000 Iops
Expansion & Connectivity:
Interfaces : 1 X SAS 12 GB/S
Compatible Bay : 2.5 Sff
