866615-003 Technical Specifications

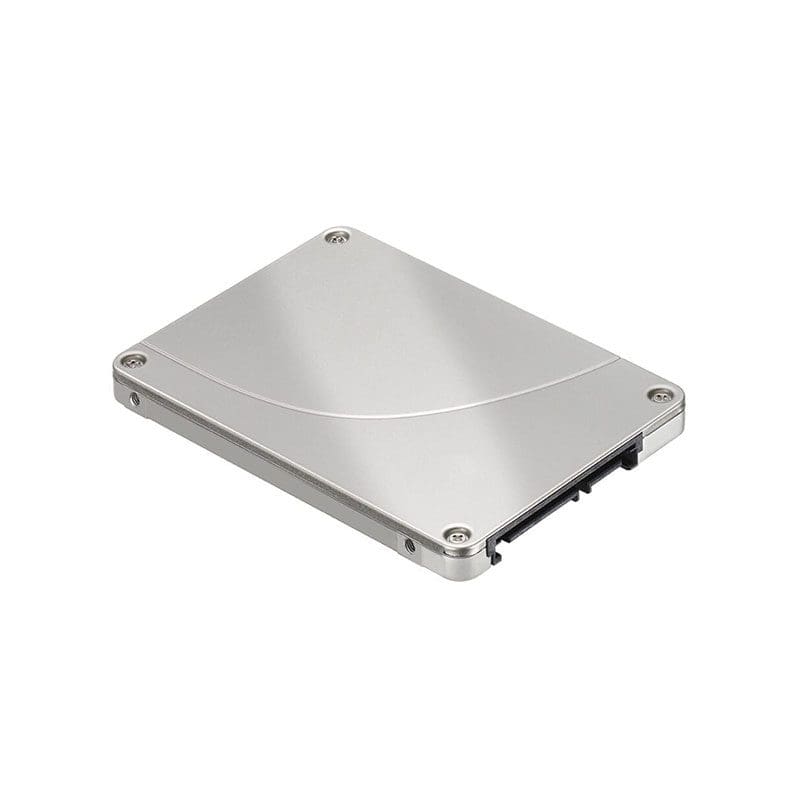

HP 960GB SATA 6GBPS 2.5Inch SFF Hot Swap Read Intensive Solid State Drive
MAIN SPECIFICATIONS:
Product Description : Hpe Read Intensive – Solid State Drive – 960 GB – SATA 6GB/S
Type : Solid State Drive (SSD\) – Hot Swap
Capacity : 960GB
Form Factor : 2.5 SFF
Interface : SATA 6GB/S
Data Transfer Rate : 600 MBPS
Features : Digitally Signed Firmware
Dimensions (Wxdxh) : 0.3 IN
Bundled With : HPE Smartdrive CarrieR
Designed For : Proliant XL190R GEN9 (2.5)
EXTENDED SPECIFICATIONS:
Device Type : Solid State Drive – Hot – Swap
Capacity : 960 GB
Form Factor : 2.5 inch SFF
Interface : SATA 6Gb/s
Features : Digitally Signed Firmware
Height : 0.3 IN
Bundled With : Hpe Smartdrive Carrier
PERFORMANCE:
Drive Transfer Rate : 600 MBPS (External)
Internal Data Rate : 530 MBPS (Read) / 490 MBPS (Write)
4KB Random Read : 64000 IOPS
4KB Random Write : 24500 IOPS
EXPANSION & CONNECTIVITY:
Interfaces : 1 X SATA 6 GB/S
Compatible Bay : 2.5 SFF
POWER:
Power Consumption : 9 WATT
MISCELLANEOUS:
Compliant Standards : WEEE
ENVIRONMENTAL PARAMETERS:
Min Operating Temperature : 32 °F
Max Operating Temperature : 140 °F
