8604F Technical Specifications

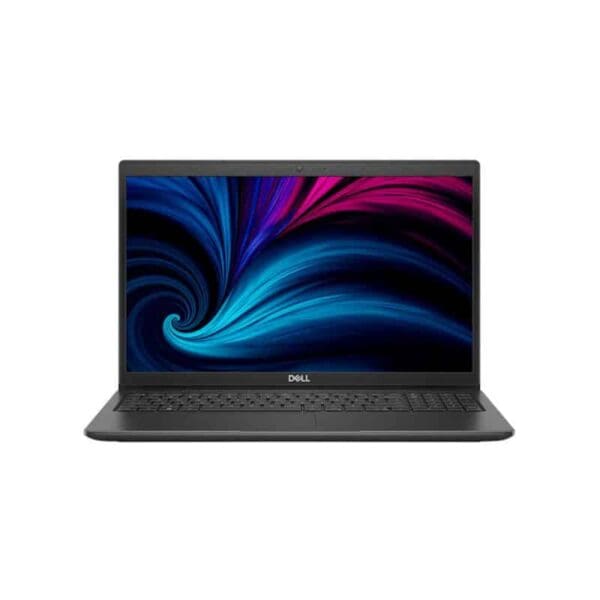

Dell Latitude 3520 15.6″ Laptop i7-1165G7 8GB 256GB SSD W10P
Operating System Windows 10 Pro (64-Bit)
Performance
Processor Intel Core i7-1165G7 (11th Gen)
CPU 2.8 to 4.7 GHz Quad-Core
L3 Cache 12 MB
Memory Type 3200 MHz DDR4
Total Installed Memory 8 GB
Memory Configuration 1 x 8 GB (User-Replaceable)
Maximum Memory Capacity 32 GB
Memory Slot Type SO-DIMM
Memory Slots 2 (1 Available)
ECC Memory No
Graphics Type Integrated
GPU Intel Iris Xe
Display
Panel Type IPS-Type LCD
Size 15.6″
Aspect Ratio 16:9
Resolution 1920 x 1080
Touchscreen No
Finish Glossy with Anti-Reflective Coating
Maximum Brightness 250 cd/m2
Color Gamut 45% NTSC
Refresh Rate 60 Hz
Contrast Ratio 700:1
Response Time 25 ms
Viewing Angle (H x V) 80 x 80°
Storage and Expansion
2.5″ Slots 1 x Height Unspecified (Available)
SSD Slots 1 x M.2 2280 PCIe (Unspecified Interface) x4 (In Use)
Total Installed Capacity 256 GB
Solid State Storage 1 x 256 GB M.2 NVMe PCIe
Optical Drive None
I/O
Ports 2 x USB-A 3.0 / 3.1/3.2 Gen 1
1 x USB-A 2.0
USB Type-C 1 x USB 3.2 Gen 2×2 (Supports DisplayPort and Power Delivery)
Display 1 x HDMI 1.4a
Audio I/O 1 x 1/8″ / 3.5 mm Headphone/Microphone Input/Output
Built-In Speakers 2 x 2 W
Built-In Microphones Yes
Media/Memory Card Slot Single Slot: microSD/microSDHC
Communications
Ethernet 1 x RJ45 (Gigabit)
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
MU-MIMO Support 2 x 2
Bluetooth 5.1
5G NR None
GPS None
NFC No
Webcam User-Facing: 720p
Battery
Battery Chemistry Lithium-Ion Polymer (LiPo)
Capacity 4-Cell: 54 Wh
Keyboard & Mouse
Keyboard 99-Key Notebook Keyboard with Number Pad
Pointing Device TouchPad
