840403-001 Technical Specifications

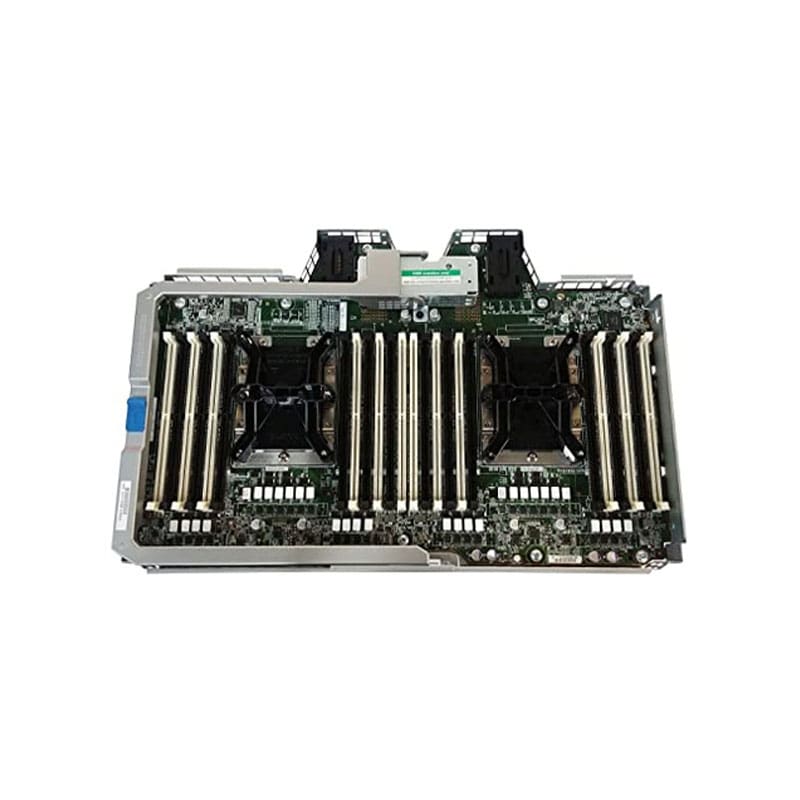

HPE CPU Mezzanine Board Kit For Proliant Dl560 G10 Dl580 G10
Manufacturer: HPE
MPN: 840403-001
Type: Controller
Sub-Type: Mezzanine card
Product Type: CPU Mezzanine Board Kit
Compatible Devices: HPE ProLiant DL560 G10 and DL580 G10 Servers
Processor Sockets: 2
Processor Support: Intel Xeon Scalable processors
Processor TDP: Up to 205W
Memory Speed: Up to 3200 MT/s
Memory Capacity: Up to 6TB (24 x 256GB LRDIMMs)
Chipset: Intel C620 chipset
Power Supply: 1200W Platinum Plus Hot Plug Power Supply (92% efficiency)
Input Voltage: 100-127V AC / 200-240V AC
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 20% to 80%
Storage Humidity: 5% to 95%
Weight: 1.36 kg (3 lb)
