839694-P01 Technical Specifications

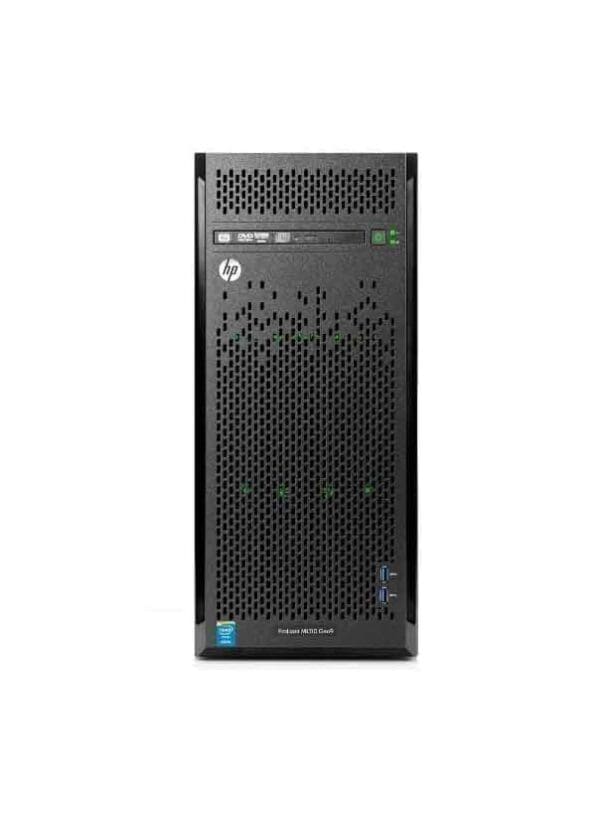

HP Proliant ML110 GEN9 E3-2620V3 Non-Hot Plug Ams Server
DDR4 Registered (RDIMM) or Load Reduced (LRDIMM), ML110
DIMM Slots Available 8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs
per channel) 8 DDR4 Slots
Maximum Capacity
(LRDIMM)
128GB (8 x 16GB LRDIMM @2133MHz)
Maximum Capacity
(RDIMM)
256GB (8 x 32GB RDIMM @2133MHz)
NOTE: This server does not support mixing LRDIMMs and RDIMMs. Attempting to mix any combination
of these DIMMs can cause the server to halt during BIOS installation.
Memory Protection Advanced ECC Advanced ECC uses single device data correction to detect and correct
single and all multibit error that occurs within a single DRAM chip.
Online spare Memory online spare mode detects a rank that is degrading and switches
operation to the spare rank.
Network
Controller
Broadcom 5717C0 Dual-port 1Gb
Expansion Slots
Expansion
Slots #
Technology Bus
Width
Connector
Width
Bus
Number
Form Factor Notes
5 PCIe 3.0 x8 x8 Full-height, halflength slot
For processor 1
4 PCIe 3.0 x4 x4 Full-height, halflength slot
For processor 1
3 PCIe 3.0 x8 x8 Full-height, halflength slot
For processor 1
2 PCIe 3.0 x4 x4 Full-height, halflength slot
For processor 1
1 PCIe 3.0 x16 x16 Full-height, ¾ length
(up to 9.5″) Slot
For processor 1
NOTE: Bus number – Default bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number.
NOTE: Five total expansion PCIe 3.0 slots. One PCIe 3.0 x16 (x16 speed); Two PCIe 3.0 x 8 (x8
speed); Two PCIe 3.0 x 4 (x4 speed).
Expansion
Slots #
Technology Bus
Width
Connector
Width
Bus
Number
Device
Number
Form Factor Notes
6 HPE ML
Gen9
Dedicated
iLO Port Kit
x1 Dedicate for ML
Series
Storage Controller
One of the following
depending on
model
Entry Models HPE Dynamic Smart Array B140i Controller
NOTE: B140i can’t mix with any standup internal controller.
Base Models HPE Dynamic Smart Array B140i Controller
NOTE: B140i can’t mix with any standup internal controller.
Internal Storage
Devices
Optical Drive Optional SATA 9.5mm DVD-ROM Optical Drive
Optional SATA 9.5mm DVD RW Optical Drive
NOTE: Optical is optional in BTO models.
