Refurbished 839296-S01 Technical Specifications

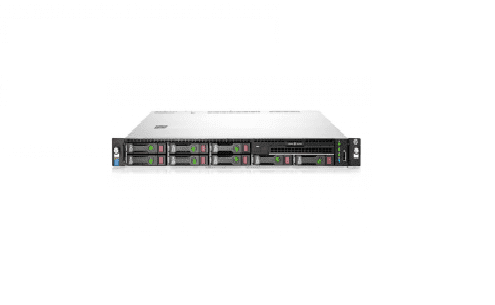

HP Proliant DL120 Gen9 Smart Buy Model (8SFF) 1X Intel Xeon 8-Core E5-2620V4/ 2.1GHz, 8GB DDR4 SDRAM, 1GB 2-PORT 361I Ethernet Adapter, 1X 550W PS 1U Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 839296-S01
Product Name: HP Proliant Dl120 Gen9 – 1u Rack Server (Smart Buy Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2620v4 / 2.1 GHz
Quickpath Interconnect : 8 Gt/S
Number Of Cores : 8 Core
64-Bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 1
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-Threading Technology, Intel Turbo Boost Technology 2
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 20 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 8 Gb / 128 Gb (Max)
Technology : Ddr4 Sdram – Advanced Ecc
Memory Speed : 2133 Mhz
Memory Specification Compliance : Pc4-19200
Form Factor : Dimm 288-Pin
RAM Slots: 8 x DDR4 RAM Slots
Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Type : 1 X Raid – Pcie 3.0 X8
Controller Interface Type : Sata 6gb/S / Sas 12gb/S
Storage Controller Name : Hp H240 Smart Host Bus Adapter
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5
GRAPHICS CONTROLLERS :
Type : Integrated
Graphics Processor : Matrox G200eh2
Video Interfaces : Vga
NETWORK & COMMUNICATION:
Interface (Bus) Type : Pci Express 2.0 X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc361i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az
POWER DESCRIPTION :
Device Type : Flex Slot Platinum Plus Power Supply
Installed Qty : 1
Nominal Voltage : Ac 120/230v (50/60 Hz)
Power Provided : 550 Watt.
