Refurbished 830012-B21 Technical Specifications

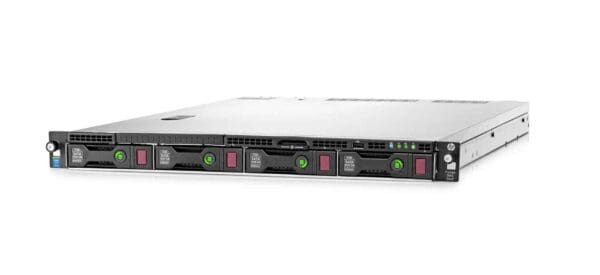

HP ProLiant DL60 Gen9 E5-2603v4 8GB-R B140i 4LFF
Type Server – rack-mountable
Height (Rack Units) 1U Rack Mount
Server Scalability 2-way
Processor 1 x Intel Xeon E5-2603V4 / 1.7 GHz (6-core)
Processor Socket LGA2011-v3 Socket
Cache Memory 15 MB L3 Cache
Cache Per Processor 15 MB
RAM 8 GB (installed) / 256 GB (max) – DDR4 SDRAM – Advanced ECC – PC4-19200
Storage Controller RAID (SATA 6Gb/s) (HP Dynamic Smart Array B140i)
Server Storage Bays Non-hot-swap 3.5″
Hard Drive No HDD
Optical Storage No optical drive
Graphics Controller Matrox G200eH2
Networking GigE
Dimensions (WxDxH) 43.46 cm x 60.7 cm x 4.29 cm
Weight 9 kg
Manufacturer Warranty Limited warranty – parts and labour – 1 year – on-site – response time: next business day
Extended Specification
General
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Front Accessible Bays Qty 1
Internal Bays Qty Bays 4
Product Form Factor Rack-mountable – 1U
Server Scalability 2-way
Type Server
Cache Memory
Cache Per Processor 15 MB
Installed Size L3 Cache – 15 MB
Dimensions & Weight
Depth 60.7 cm
Height 4.29 cm
Weight 9 kg
Width 43.46 cm
Environmental Parameters
Humidity Range Operating 8 – 90% (non-condensing)
Max Operating Temperature 35 °C
Min Operating Temperature 10 °C
Expansion / Connectivity
Bays 4 (total) / 4 (free) x internal 3.5″ LFF ¦ 1 (total) / 1 (free) x external 5.25″
Interfaces 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal)
Slots 2 (total) / 1 (free) x CPU ¦ 8 (total) / 7 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 – low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal)
Graphics Controller
Graphics Processor Matrox G200eH2
Video Interfaces VGA
Hard Drive
Type No HDD
Miscellaneous
Compliant Standards ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438
Included Accessories HP Easy Install Rails
Monitor
Monitor Type None.
Networking
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller HP NC361i
Ethernet Ports 2 x Gigabit Ethernet
Features Wake on LAN (WoL), PXE support
Interface (Bus) Type PCI Express 2.0 x2
Remote Management Controller Integrated Lights-Out 4
Operating System / Software
OS Certified SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
Optical Storage
Type No optical drive
Power
80 PLUS Certification 80 PLUS Silver
Device Type Power supply
Efficiency 89%
Power Provided 550 Watt
Processor / Chipset
CPU Intel Xeon E5-2603V4 / 1.7 GHz
CPU Qty 1
CPU Socket LGA2011-v3 Socket
CPU Upgradability Upgradable
Max CPU Qty 2
Number of Cores 6-core
RAM
Configuration Features 1 x 8 GB
Effective Memory Speed 1866 MHz
Features Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory
Form Factor DIMM 288-pin
Installed Size 8 GB / 256 GB (max)
Memory Specification Compliance PC4-19200
RAM Supported PC4-19200 – 256 GB registered ¦ PC4-19200 – 256 GB Load-Reduced
Rated Memory Speed 2400 MHz
Slots 8 (Total) / 7 (empty) (8 DDR4 Slots)
Technology DDR4 SDRAM – Advanced ECC
Storage Controller
Channel Qty 10
Controller Interface Type SATA 6Gb/s
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Storage Controller Name HP Dynamic Smart Array B140i
Type 1 x RAID
