817075-001 Technical Specifications

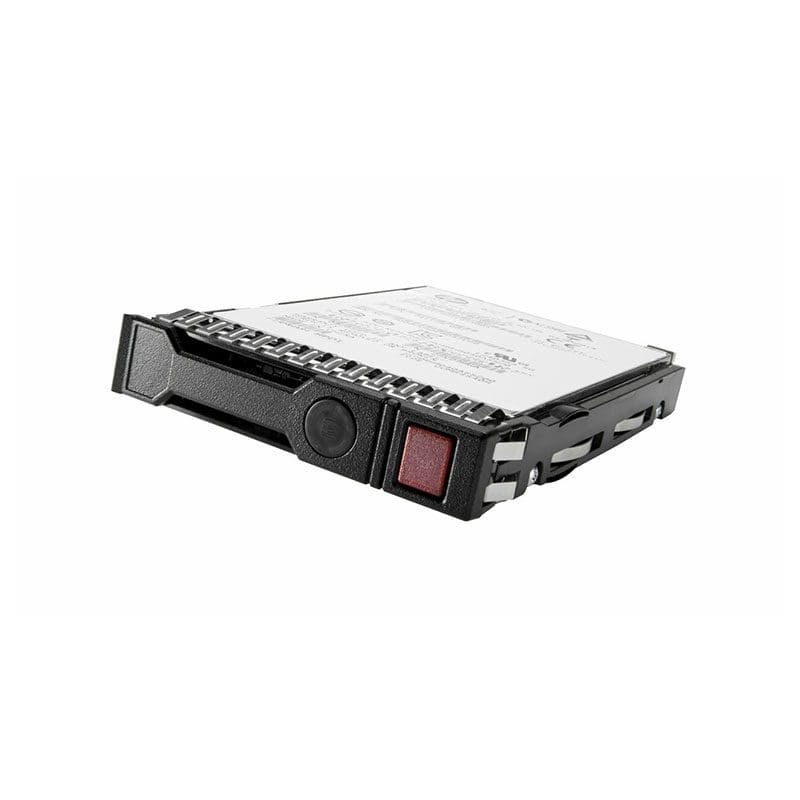

HP 480GB SATA 6GBPS Read Intensive 3 Sff 2.5Inch Sc Solid State Drive For Proliant Gen7 Servers Only
Product Information
Manufacturer Name: HPE
Type: Solid State Drive – Hot-Swap
SSD Type: SATA-6GBPS
Technical Information
Capacity: 480 GB
Form Factor: 2.5 Inch SFF
Interface: SATA 6GBPS
Features: Power Loss Support
Performance
Drive Writes Per Day (DWPD): 1
Drive Transfer Rate: 600 MBPS (External)
Internal Data Rate: 530 MBPS (read) / 465 MBPS (write)
4KB Random Read: 63000 IOPS
4KB Random Write: 17000 IOPS
Expansion & Connectivity
Interfaces: 1 x SATA 6 GB/S – 7 pin Serial ATA
Compatible Bay: 2.5 Inch SFF
DimensionsHeight: 0.63 Inch
Width: 3.10 Inch
Depth: 5.45 Inch
Weight: 1.50 Lbs
Power
Power Consumption: 9 Watt
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F
