816815-B21 Technical Specifications

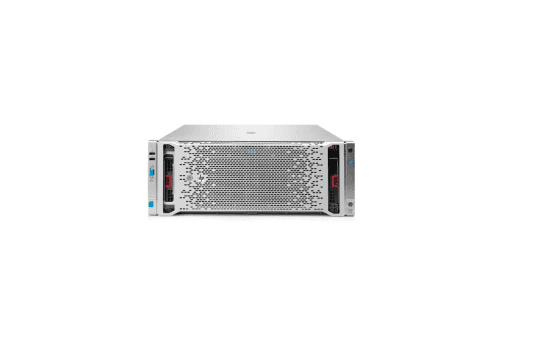

HP Proliant DL580 G9 High Performance 4X Intel Xeon 24-CORE E7-8890V4/ 2.2GHz, 256GB DDR4 SDRAM, P830I With 4GB FBWC, 2 X 10 Gigabit Ethernet, 4X 1500W RPS 4U Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 816815-B21
Product Name : Proliant Dl580 Gen9 – 4u Rack Mount Server
PROCESSOR & CHIPSET :
CPU : Intel Xeon E7-8890V4 / 2.2 GHz
Max Turbo Speed : 3.4 Ghz
Number Of Cores : 24 Core
Cpu Qty : 4
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2
Chipset Type : Intel C602j
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 180 MB
Cache Per Processor : 45 MB
MEMORY :
Installed Size : 256 Gb / 6 Tb (Max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-Pin
Memory Slots: 96 x DDR4 RAM Slots
Configuration Features : 16 X 16 GB
STORAGE:
Hard Drive : None
Optical Drive : None
STORAGE CONTROLLERS:
Type : 1 X Raid – Pcie 2.0 X4
