814803-001 Technical Specifications

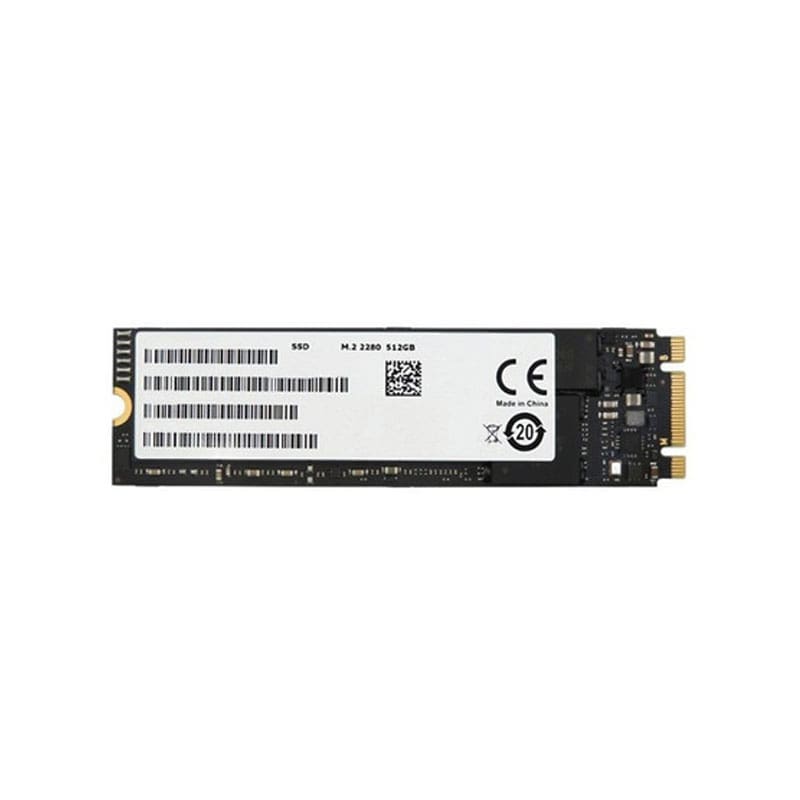

HP 512GB PCI Express 3.0 x4 NVMe M.2 2280 Internal Solid State Drive (SSD)
Manufacturer: HP
Brand: HP
Performance
Product Type: Internal Solid State Drive
Form Factor: M.2 2280
Capacity: 512 GB
Drive Interface Type: PCI Express 3.0 x4
Sequential Read Speed: Up to 2,500 MB/s
Sequential Write Speed: Up to 1,500 MB/s
Random Read IOPS: Up to 300,000 IOPS
Random Write IOPS: Up to 250,000 IOPS
Endurance
Total Bytes Written (TBW): 300 TBW
MTBF (Mean Time Between Failures): 1.75 million hours
Power Consumption
Active: 5.5W (typical)
Idle: 0.5W (typical)
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Shock Resistance: 1,500G/0.5ms
Dimensions
Length: 80mm
Width: 22mm
Thickness: 3.5mm
Weight: 10g
