Refurbished 813192-B21 Technical Specifications

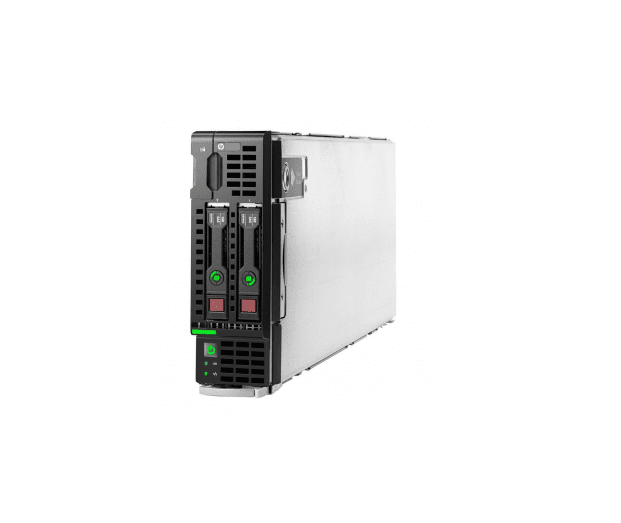

HP Proliant BL460C Gen9 1x Intel Xeon 8-Core E5-2609V4/1.7GHz 20MB L3 Cache, 16GB DDR4 SDRAM, 2X10 Gigabit Ethernet, 2-Way Blade Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 813192-B21
Product Name : Proliant Bl460c Gen9 2-Way Blade Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2609v4/1.7GHz
Number Of Cores : 8 Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
Processor Main Features : Hyper-Threading Technology, Intel Turbo Boost Technology 2
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 20 MB
Cache Per Processor : 20 MB
MEMORY :
Installed Size : 16 GB
Maximum Size : 512 GB
Technology : Ddr4 Sdram
Memory Speed : 2133 Mhz
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-Pin
Memory Slots: 16 x DDR4 RAM Slots
Features :
Online Spare Memory
Load-Reduced Dimm (Lrdimm)
Hp Smartmemory
Configuration Features : 2 X 8 Gb
Ram Supported :
Pc4-17000 – 256 Gb – Registered – Ecc
Pc4-17000 – 512 Gb – Load-Reduced – Ecc
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Storage Controller Type : 1 X Sas-3 – Pcie 3.0 X8
Controller Interface Type : Sata 6gb/S / Sas 12gb/S
Storage Controller Type : Hp H244br Smart Host Bus Adapter
Raid Level : Raid 0, Raid 1
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Processor : Matrox G200eh
NETWORK & COMMUNICATION :
Interface (Bus) Type : Flexiblelom
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller(S) : Hp Flexfabric 536flb
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel Over Ethernet (FCoE)
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol)
Compliant Standards : IEEE 802.1Q, IEEE 802.1P, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.3AE, IEEE 802.3AP, IEEE 802.1QAU
