8038C4U Technical Specification

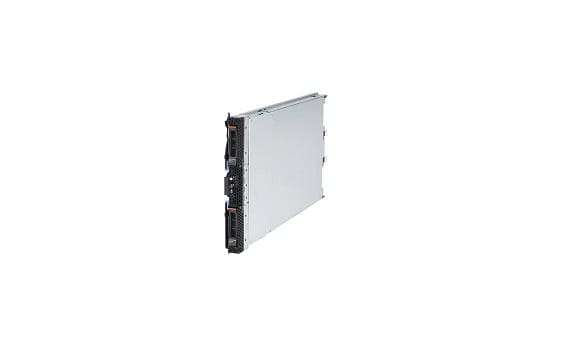

IBM Server HS23E Intel 2.2GHz Xeon
Chassis support:
BladeCenter H, BladeCenter HT, BladeCenter S, and BladeCenter E are supported (some configurations may have limitations).
Systems Management:
UEFI
Renesas SH7757 controller-based IBM Integrated Management Module II (IMM2) with remote presence (graphics, keyboard and mouse, and virtual media)
Predictive Failure Analysis
Light path diagnostics panel
Automatic Server Restart
IBM Systems Director
IBM Systems Director Active Energy Manager
IBM ServerGuide
IBM FastSetup
Security features:
Power-on password
Administrator’s password
Trusted Platform Module 1.2
ContentsServer blade, documentation
General
Chassis Form Factor: Blade Server
Color: Black
Weight: 10.1 lb(s)
Memory
Cache Memory (installed): 15 MB
RAM (installed): 24 GB
RAM (max): 192GB RAM
RAM Technology: DDR3 SDRAM
Memory Notes24GB (3x8GB) 1333MHz ECC DDR3 SDRAM, expandable up to 192GB
