803860-B21 Technical Specifications

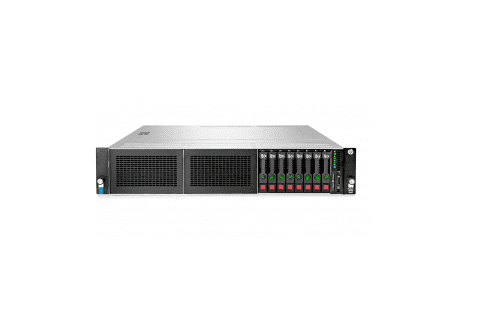

HP Proliant DL380 G9 High Performance Model 2X Intel Xeon 12-Core E5-2690V3/2.6GHz, 32GB DDR4, 4X Gigabit Ethernet, 8X SFF HDD BAYS, 2X 800W PS, 2U Rack-Mountable Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 803860-B21
Product Name : Proliant Dl380 Gen9 – 2u Rack Mount (High Performance Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2690V3/2.6GHz
Max Turbo Speed : 3.5 GHz
Number Of Cores : 12 Core
Installed Qty : 2
Max Supported Qty : 2
Chipset Type : Intel C610 Series
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 60MB
Cache Per Processor : 30 MB
MEMORY :
Installed Size : 32GB/384 GB (MAX)
Technology : DDR4 SDRAM
Memory Speed : 2133 MHZ
Memory Specification Compliance : PC4-17000
Form Factor : DIMM 288-PIN
Memory Slots: 24 x DDR4 RAM Slots
Features : Registered, Hp Smartmemory
Configuration Features : 2X 16 GB
STORAGE & STORAGE CONTROLLER :
Hard drive : none.
Optical drive type : dvd-rw.
STORAGE CONTROLLERS:
Channel Qty : 8
