8036ARX Technical Specifications

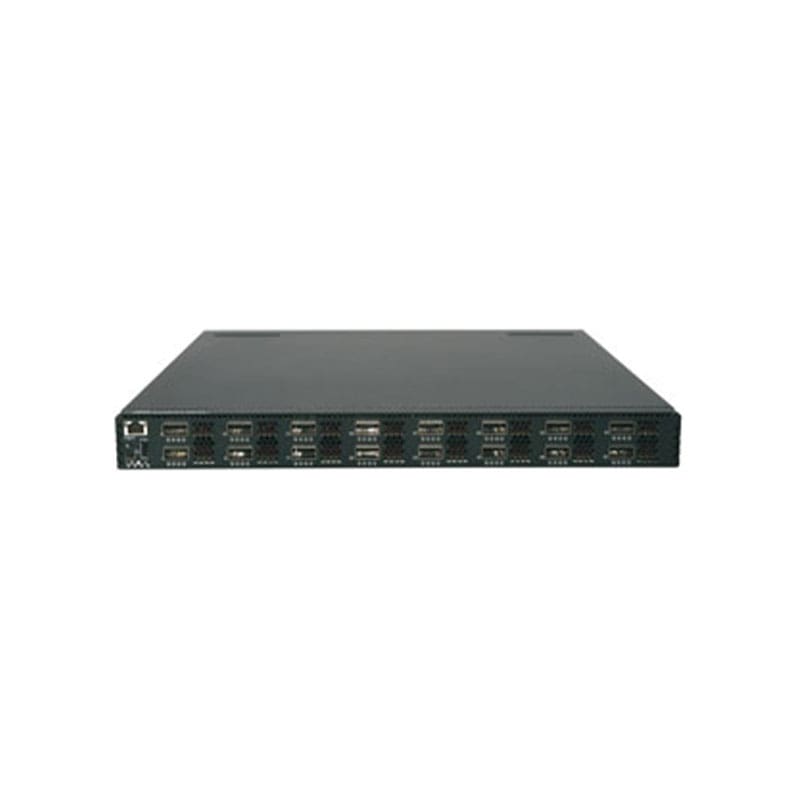

IBM RackSwitch G8316 Layer 3 Switch – Manageable – 3 Layer Supported – 1U High – Rack-mountable –
General Information
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: Yes
Modular No: Stack Port Yes
48 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
40 Gigabit Ethernet
Network Technology: 1000Base-SX
1000Base-LX
1000Base-T
10GBase-SR
10GBase-LR
10GBase-ER
40GBase-X
I/O Expansions
Number of Total Expansion Slots 52
Expansion Slot Type QSFP+
SFP
SFP+
Shared SFP Slot Yes
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 20.2″
Depth: 17.3″
Weight (Approximate): 14.11 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: GS
TÜV
